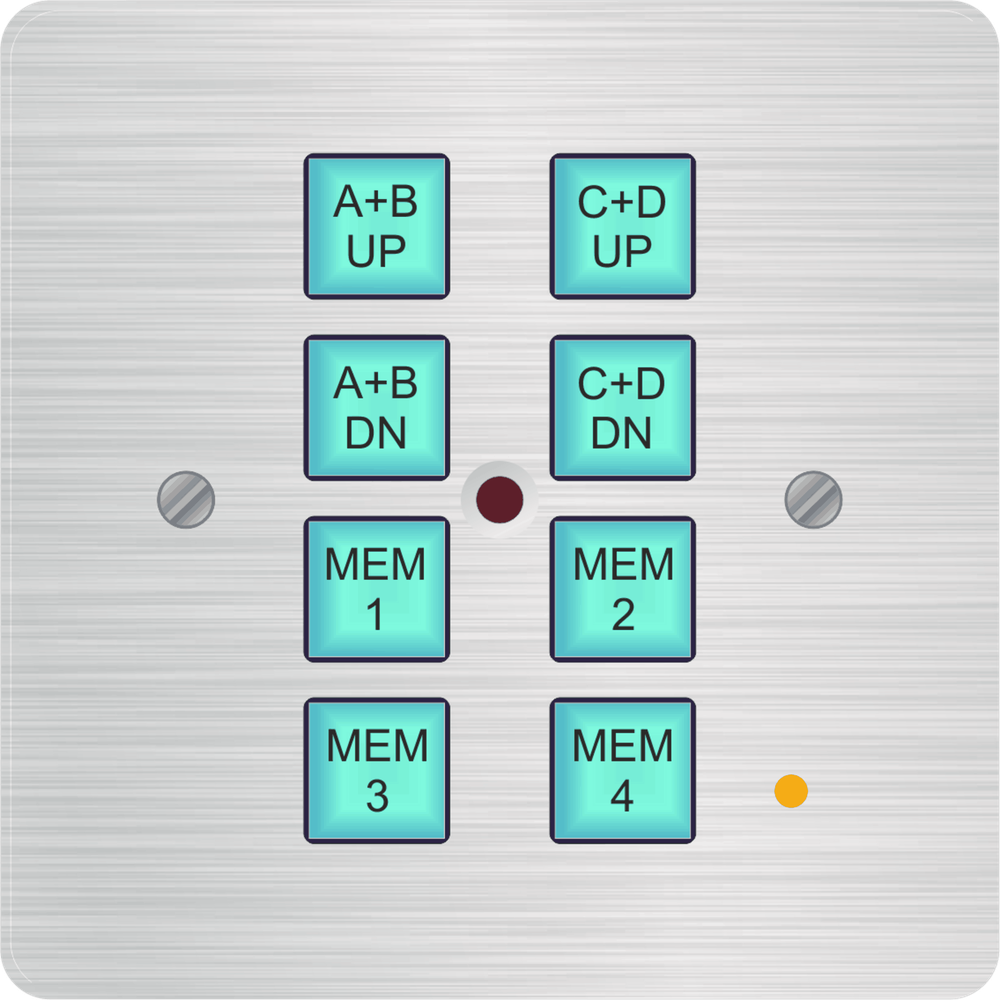

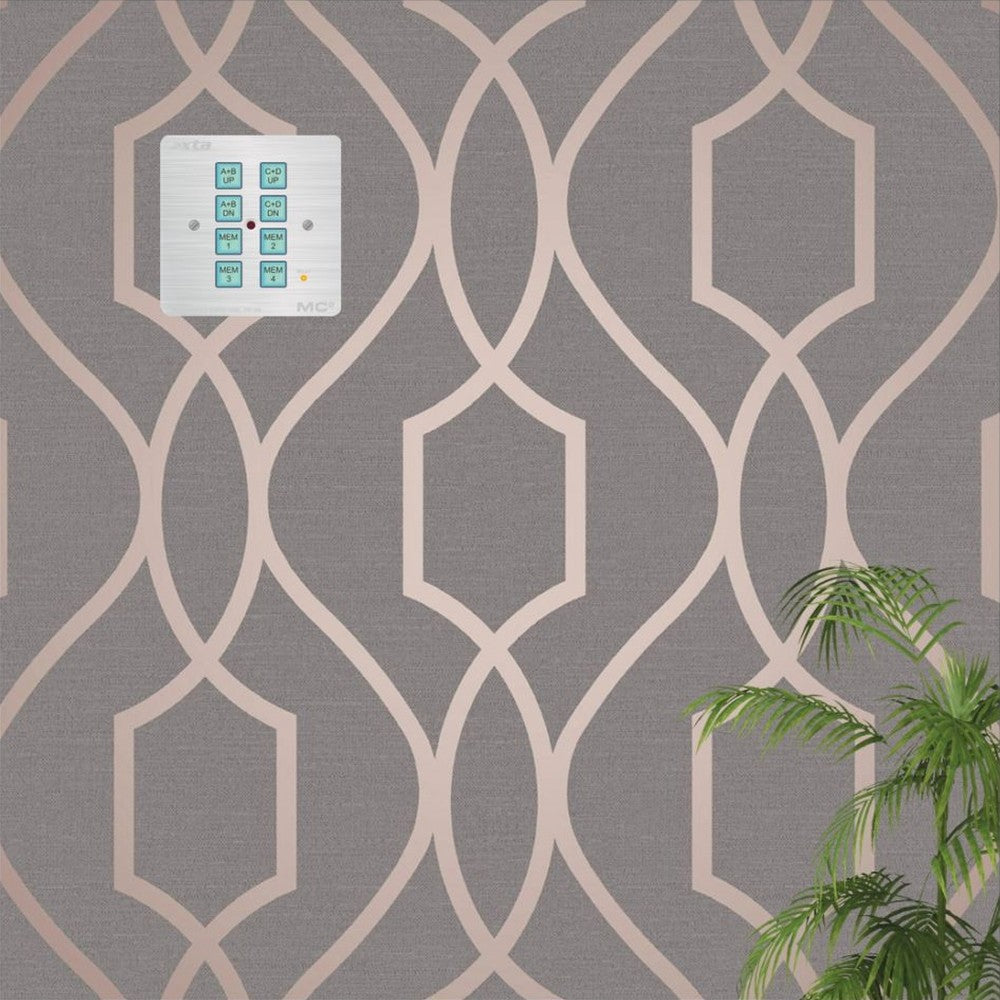

MC² DPanel-8 Delta-Series Remote Panel

The DPanel-8 is a stand-alone remote panel, operating using the RS485 bus for comms and using either the GPIO port of an MC2 Delta DSP amplifier or XTA DPA amplifier, or an external 5V source for a power supply.

The DPanel-8 is also fitted with an isolated SPDT relay to control external equipment such as projector screens or blind/drape motor systems. It may be programmed “in situ” whilst plugged into Delta or DPA amplifier, or may be connected directly to a PC (via a suitable RS485 adapter) for programming. It uses the “simple remote protocol” embedded in the firmware of all Delta DSP or DPA amplifiers and all 4 or 5 Series XTA products, as well as the DC1048 and Ti1048 installation management systems. Multiple panels may be connected to a system, and the panels can coexist with AudioCore connected via Ethernet or USB.

Programming software is here

https://audiocore.wpengine.com/wp-content/uploads/2019/04/DPanel-Utilities.zip
