Silent Angel Bonn N8C Network Switch
Silent Angel Bonn N8C Network Switch
In stock
RRP: $1599
Bonn N8C
HiFi Grade 8-port Network Switch
Interference-Free Streaming Network for Pure Sound
The Bonn N8C is engineered to optimize network audio streaming. By minimizing signal noise and reducing data packet errors, it significantly improves streaming stability and sound clarity. With a high-precision TCXO clock and support for external master clock input, Bonn N8C delivers consistent, low-jitter transmission, ensuring every sonic detail reaches your system intact.
Built-in High-Precision TCXO
Noise-Free Streaming Network
External Word Clock Input
Network Purification Engineered for High-Fidelity Streaming
Exclusive Clock Control Module
10M/25MHz TCXO Minimizes Network Latency and Jitter Problems
Medical-Grade Power Supply Design
Stable power delivery isolates electrical noise from the network.
Advanced Isolation Circuit Design
Enhances data integrity and suppresses noise-induced errors

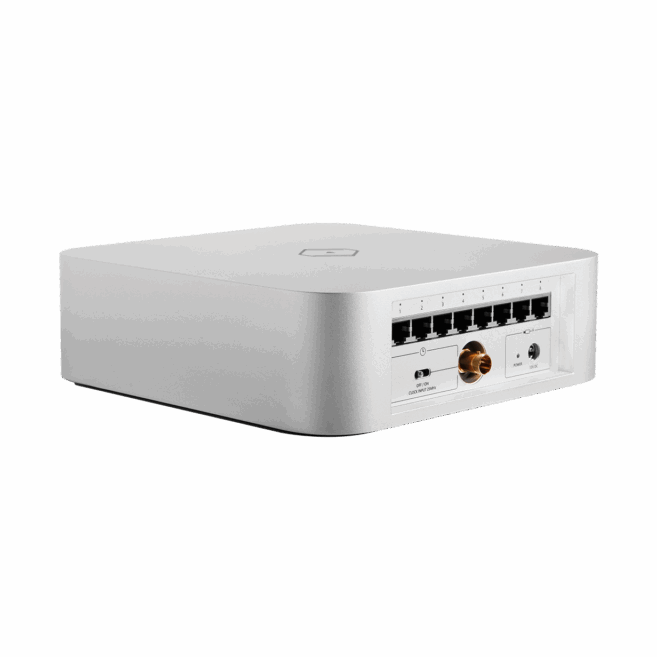

Professional Connectivity for High-Fidelity Streaming Systems

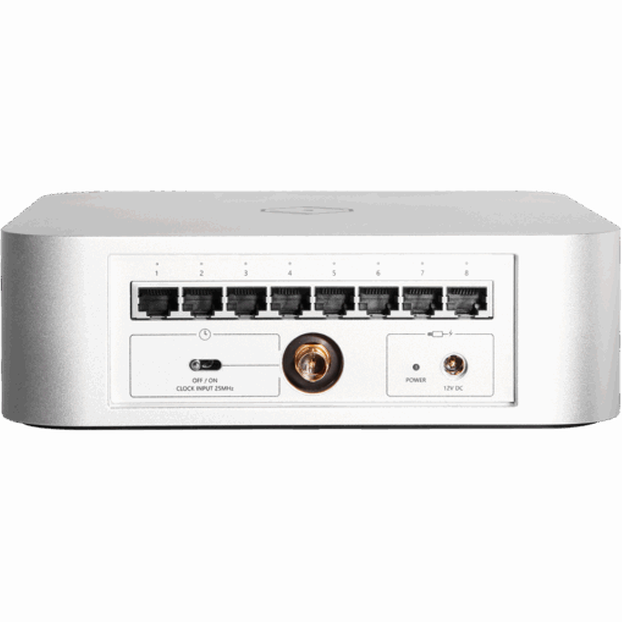

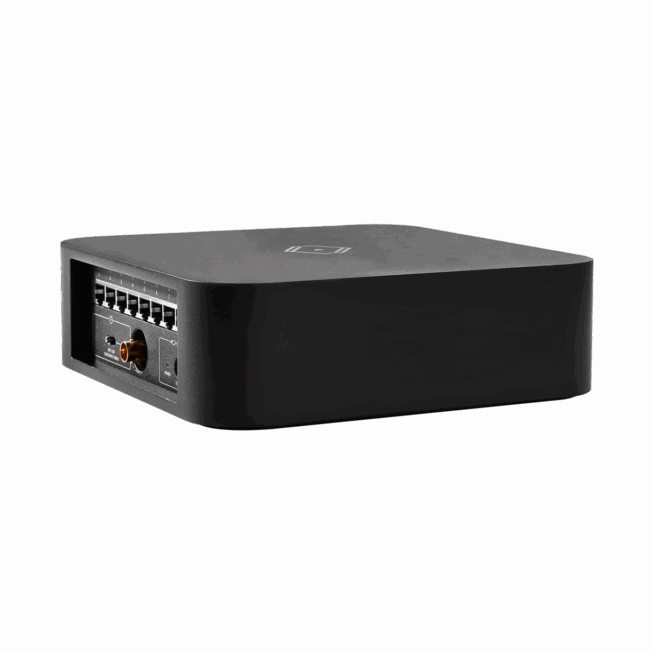

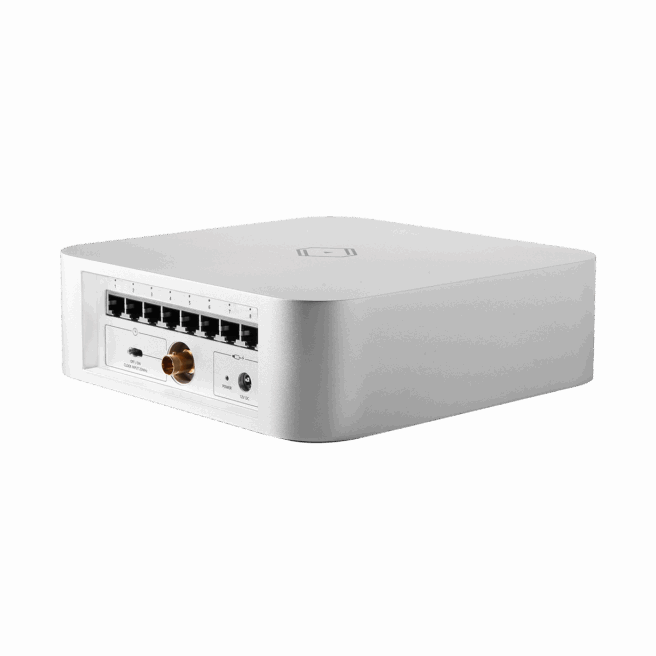

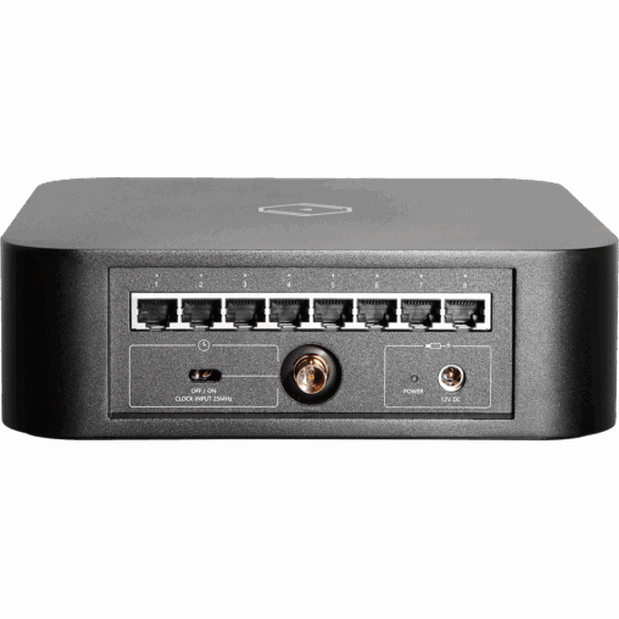

Equipped with 8 high-speed network ports, each with status LEDs to monitor activity and speed, ensuring optimal connectivity across all devices.
Includes a BNC input for 10MHz or 25MHz master clocks and a manual toggle to switch between internal and external clock sources for high-end timing precision.
Precise and Flexible HiFi Streaming Network Environment
Exquisite Craftsmanship for Perfect Audio Creation

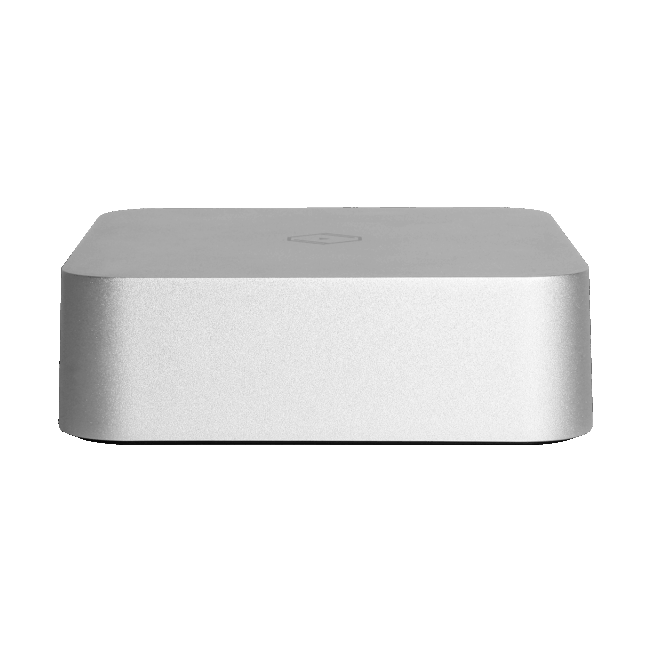

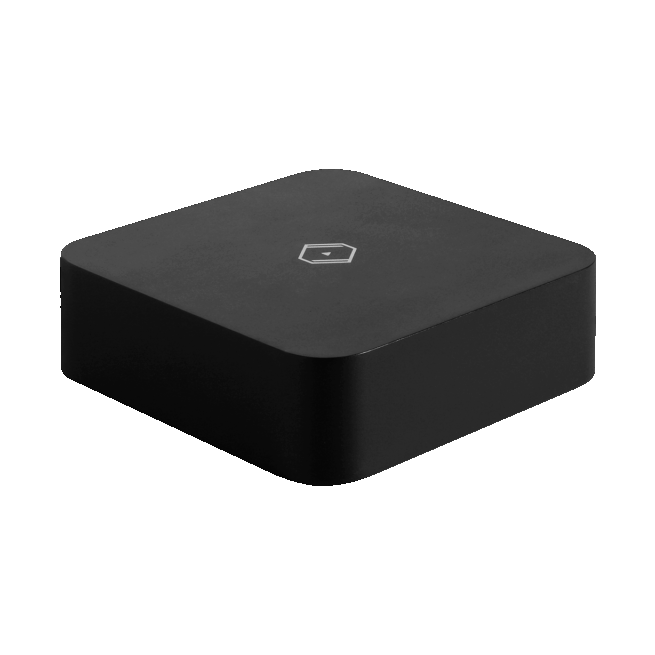

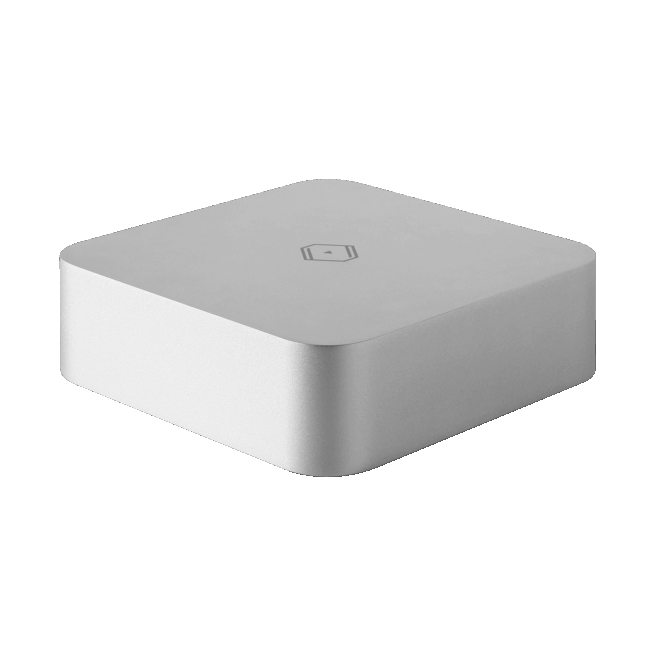

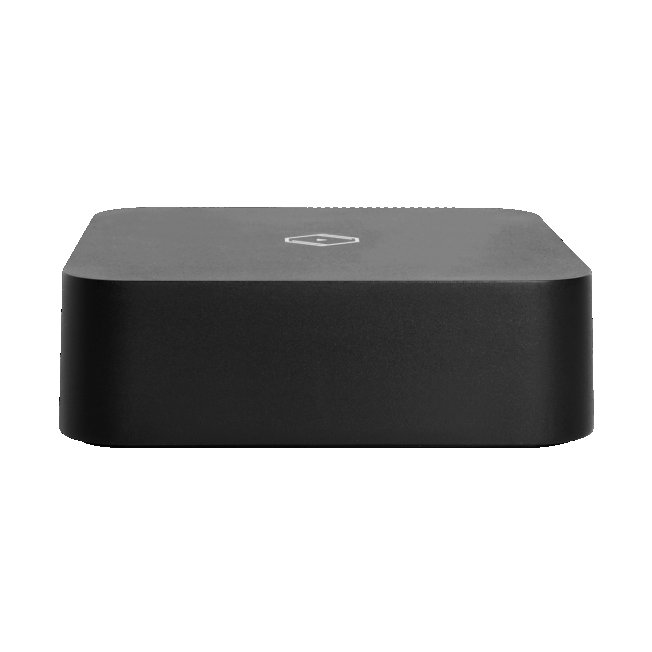

The Bonn N8C features a robust aluminum alloy chassis that protects against vibration, dust, and electrical noise, ensuring consistently high sound quality in any environment.
Built-in TCXO with Clock Selection Switch
Equipped with a high-precision internal TCXO oscillator and a physical switch for selecting between internal and external clock sources, the N8C ensures consistent timing accuracy, even without a master clock.
Flexible BNC Clock Input Selection
Supports either 10MHz or 25MHz external clocks, via a dedicated BNC port, enabling integration with the preferred master clock based on system requirements and acoustic preferences.
Product Specification
| Available Color | Black, Silver |
| Ethernet Port | 8 Gigabit Ethernet ports |
| Clock Input Option | 10MHz, 25MHz |
| Power Input | (DC) 12V/1A, 1.2W (5.5mm x 2.5mm connector) |
| Temperature | Operating: 32 ~ 86 °F (0 ~ 30 °C) Storage: -4 ~ 158 °F (-20 ~ 70 °C) |
| Humidity | Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing) |
| Dimensions | 200(W) * 62(H) * 200(D)mm 7.88(W) * 2.45(H) * 7.88(D) inches |
| Weight | Net: 2.8kg (6.18lbs) / Gross: 3.6kg (7.94lbs) |
| Certificate | CE, FCC |
