Velodyne Acoustics Deep Blue Subwoofers

Vendor: Velodyne

Type: subwoofer

Login to view price

Hurry up, only 4 items left in stock.

Model: Deep Blue 8

Deep Blue 8 Deep Blue 10 Deep Blue 12 Deep Blue 15

Color: matte-black

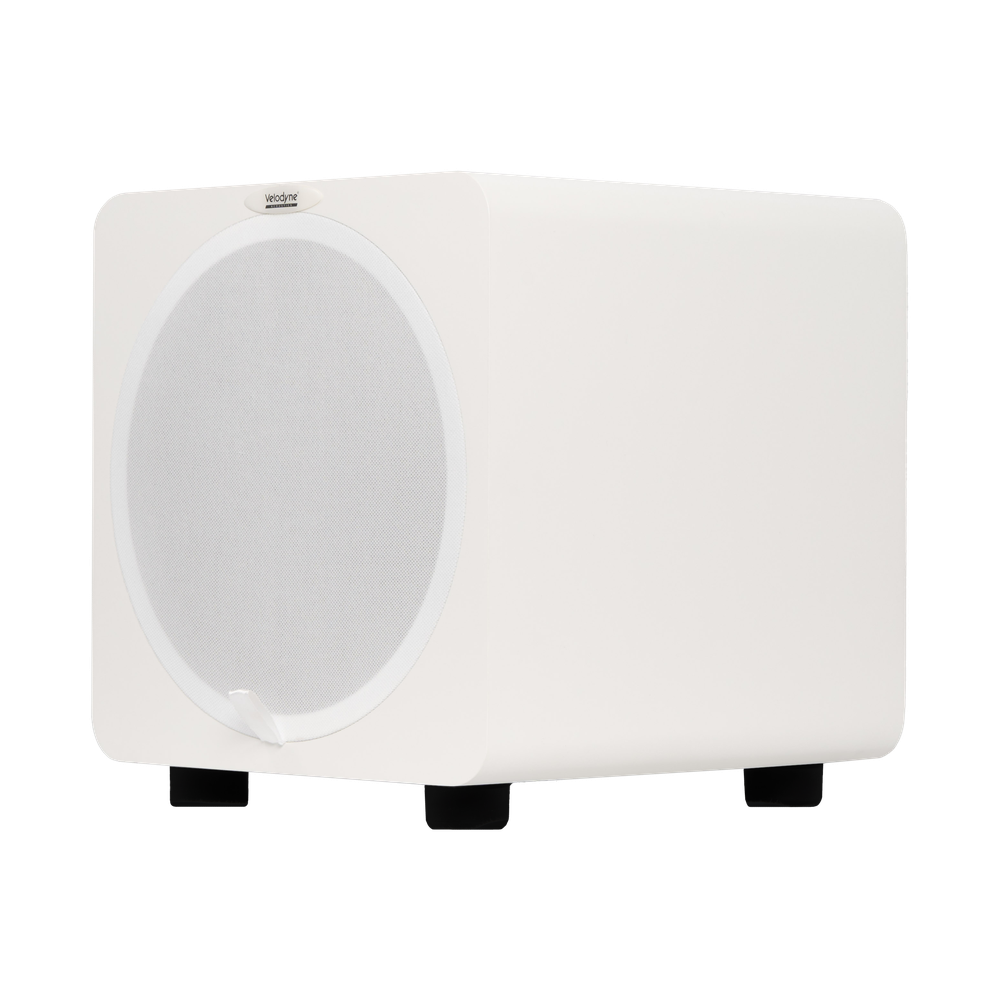

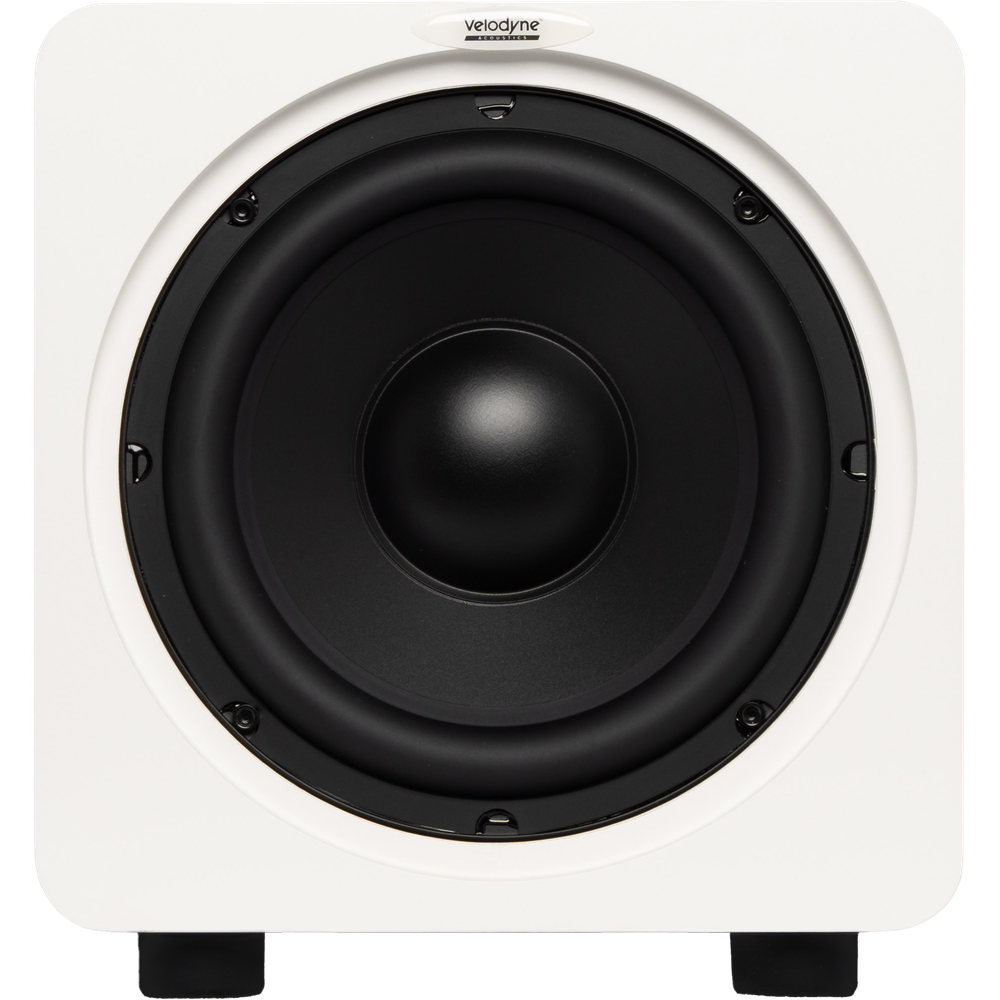

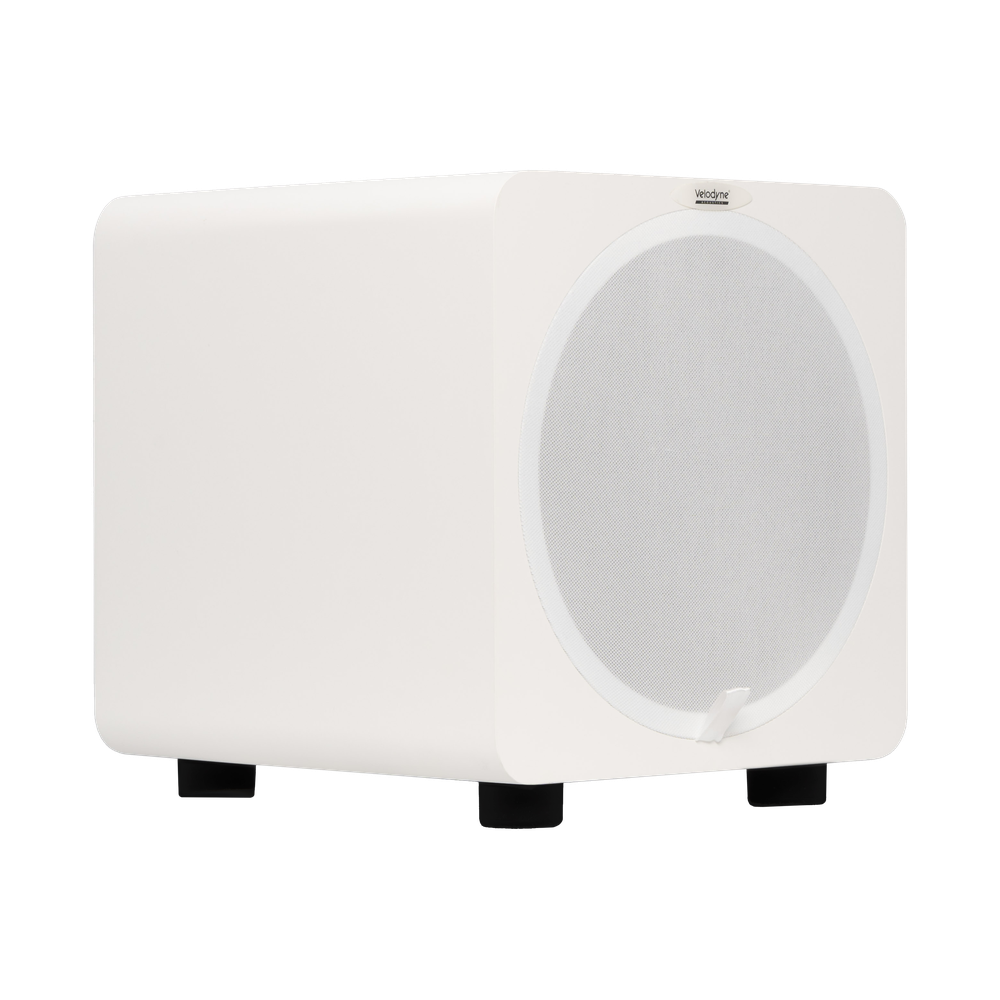

matte-black matte-white

RRP: 8"-$1299, 10"-$1599, 12"-$1899, 15"-$2399

Pressurized, precise low frequency for every living ambiance

The Deep Blue Series combines all the benefits of Velodyne Acoustics subwoofers in a living room-friendly format. The frequency response of the front-firing drivers, designed from the ground up, extends deep into the frequency basement for impressive home theater experiences.

Specifications Images Downloads

The Features

Quad voice coil provides high efficiency, fast rise times and pulse fidelity with double ferrite magnets
Enclosed cabinet made of solid MDF material prevents distortion and vibration

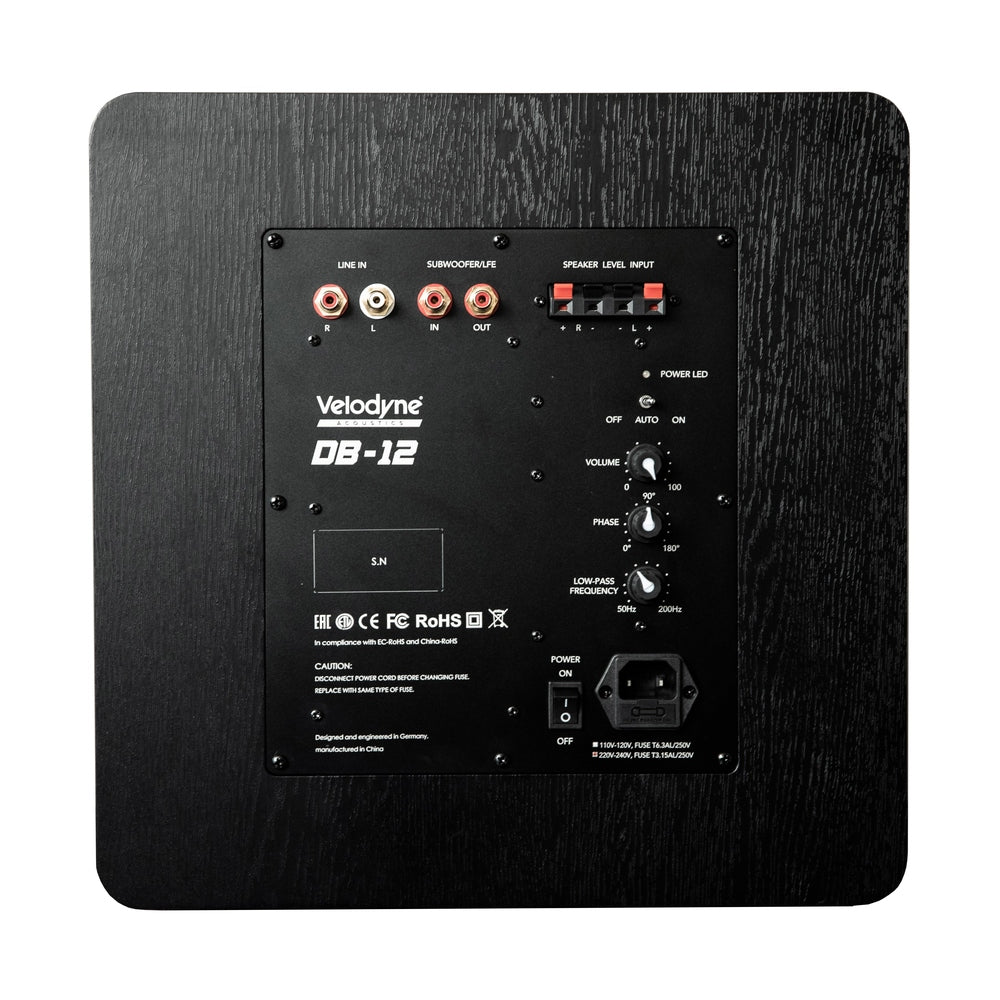

With adjustable level, crossover frequency and phase, the Deep Blue subwoofers can be flexibly adapted to the listening room and existing equipment

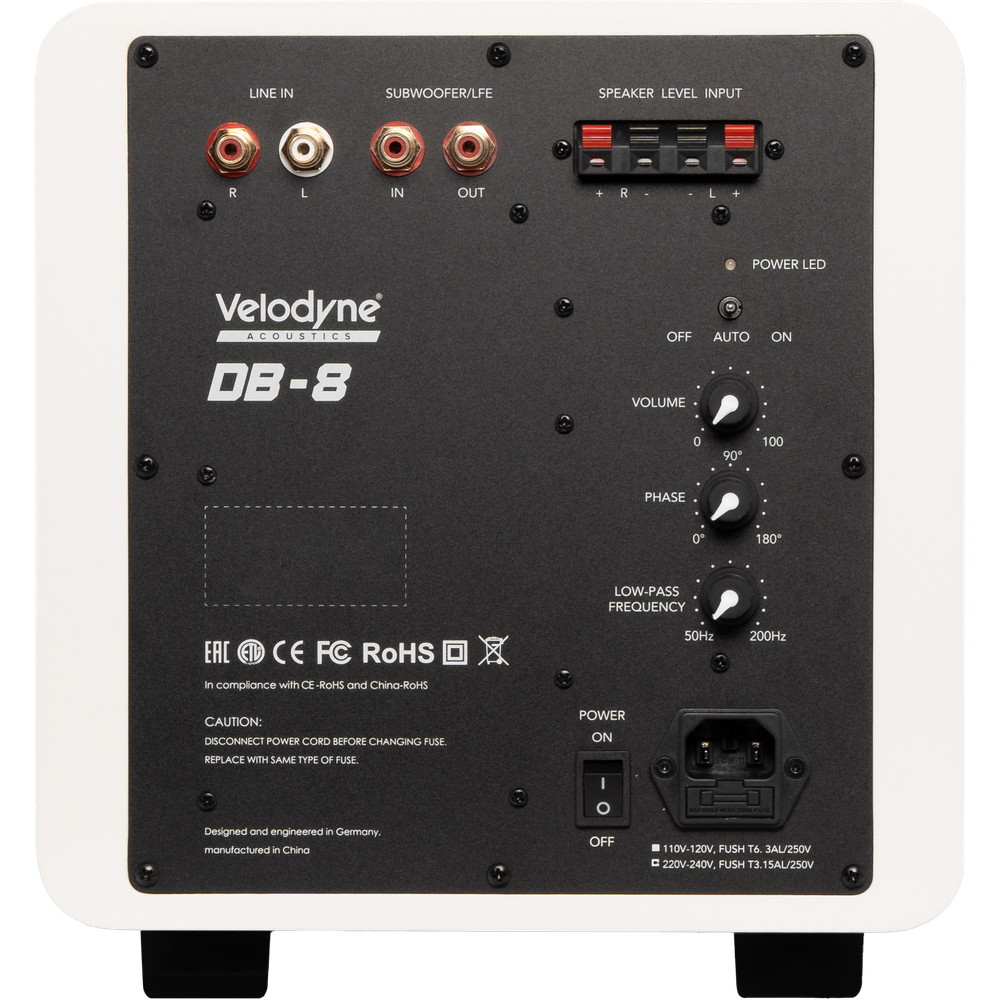

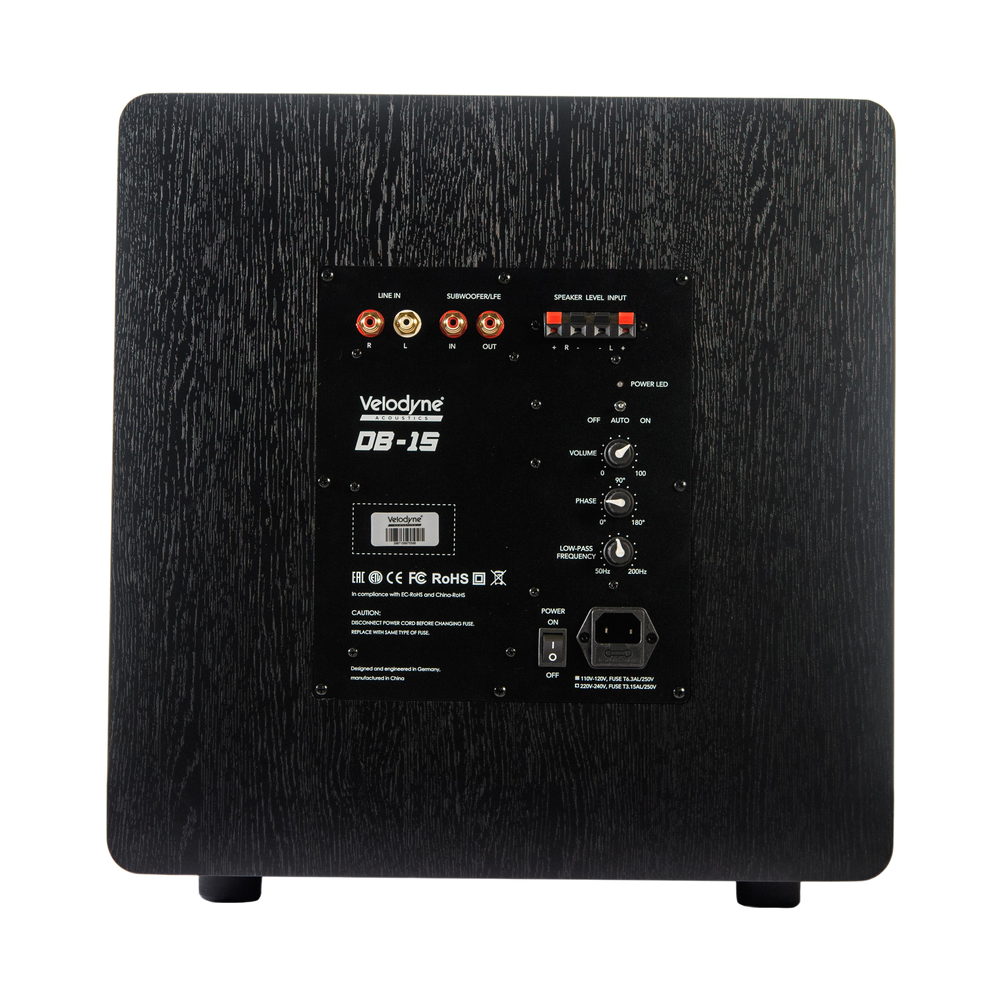

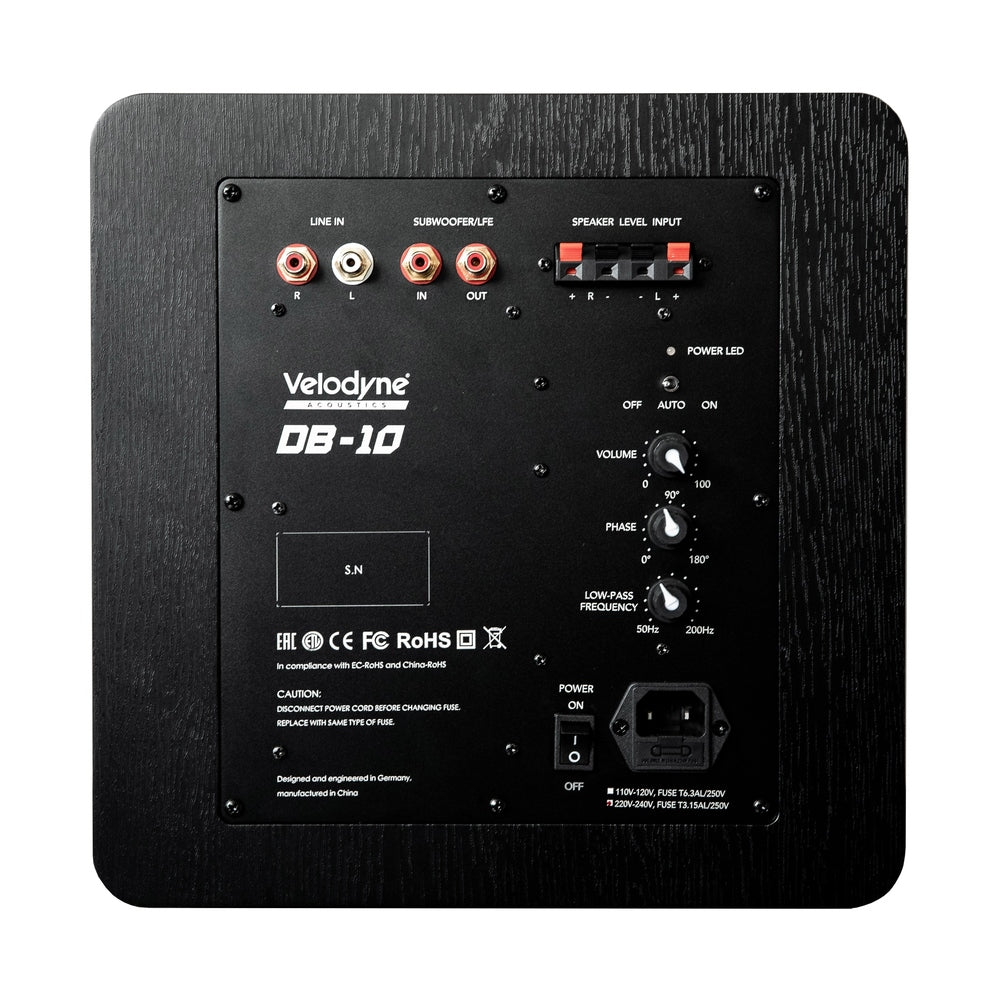

For connectivity, RCA input jacks are provided for the left and right channels, as well as a dedicated subwoofer input with loop-through capability

The matching subwoofer for every setup

With drivers ranging from 8 to 15 inches, the Deep Blue series offers the right subwoofer for every set-up.

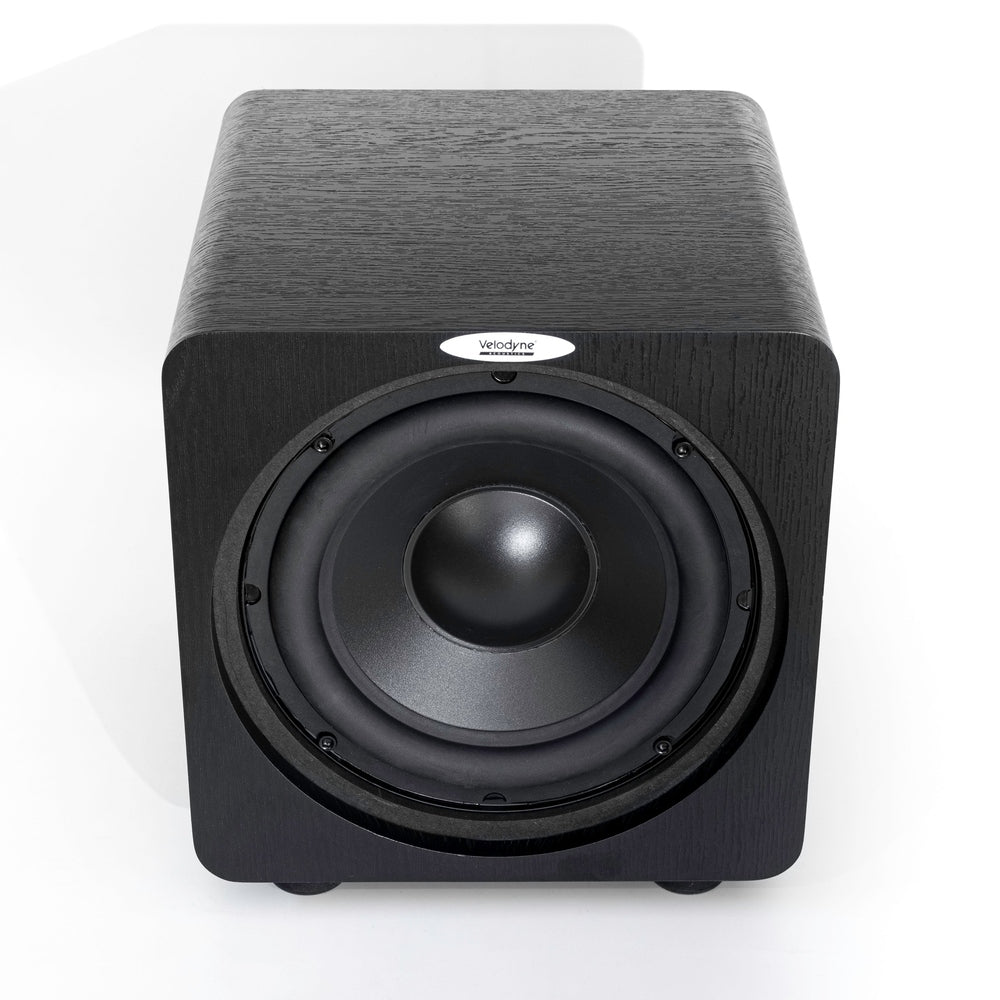

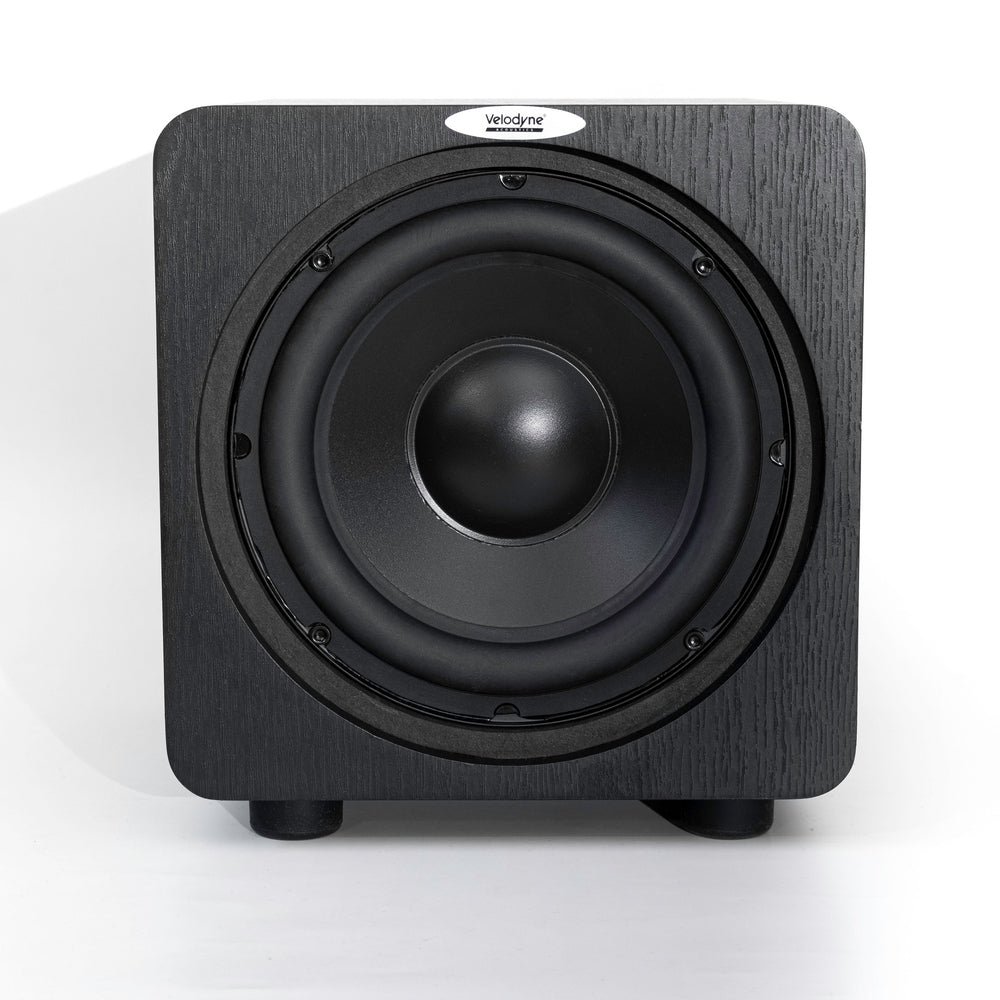

Deep Blue 8

Driver	8″ forward firing
Amplifier Class AB	800 watts dynamic 300 watts RMS power
Frequency Response: Overall Frequency Response: (± 3 dB)	18 – 300 Hz 32 – 180 Hz
Low Pass Crossover	50 Hz to 180 Hz (12 dB/Octave)
Phase	0 to 180 degrees
Cabinet Design	MDF Closed Box with 52mm / 2” front Baffle
Magnet Structure	Dual ferrite magnet motor
Woofer	8” high excursion double vented basket driver with PP inforced Membrane
Voice Coil	Four Layer 2″ / 52mm Voicecoil
Input	GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
Output	Gold plated LFE /RCA
Power Selector	Off / Auto / On
Finishes	Black
Dimensions (W/H/D) (includes feet and connectors)	26 x 28 x 29 cm
Weight (approx)	9 kg
Shipping Weight (approx)	10 kg

Deep Blue 10

Driver	10″ forward firing
Amplifier Class AB	850 watts dynamic 350 watts RMS power
Frequency Response: Overall Frequency Response: (± 3 dB)	16 – 280 Hz 28 – 180 Hz
Low Pass Crossover	50 Hz to 180 Hz (12 dB/Octave)
Phase	0 to 180 degrees
Cabinet Design	MDF Closed Box with 52mm / 2” front Baffle
Magnet Structure	Dual ferrite magnet motor
Woofer	10” high excursion double vented basket driver with PP inforced Membrane
Voice Coil	Four Layer 2″ / 52mm Voicecoil
Input	GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
Output	Gold plated LFE /RCA
Power Selector	Off / Auto / On
Finishes	Black
Dimensions (W/H/D) (includes feet and connectors)	29,6 x 31,6 x 34,8 cm
Weight (approx)	11 kg
Shipping Weight (approx)	12,5 kg

Deep Blue 12

Driver	12″ forward firing
Amplifier Class AB	850 watts dynamic 350 watts RMS power
Frequency Response: Overall Frequency Response: (± 3 dB)	15 – 250 Hz 26 – 140 Hz
Low Pass Crossover	50 Hz to 180 Hz (12 dB/Octave)
Phase	0 to 180 degrees
Cabinet Design	MDF Closed Box with 52mm / 2” front Baffle
Magnet Structure	Dual ferrite magnet motor
Woofer	12” high excursion double vented basket driver with PP inforced Membrane
Voice Coil	Four Layer 2,5″ / 65mm Voicecoil
Input	GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
Output	Gold plated LFE /RCA
Power Selector	Off / Auto / On
Finishes	Black
Dimensions (W/H/D) (includes feet and connectors)	35 x 37 x 38,8 cm
Weight (approx)	13 kg
Shipping Weight (approx)	14,8 kg

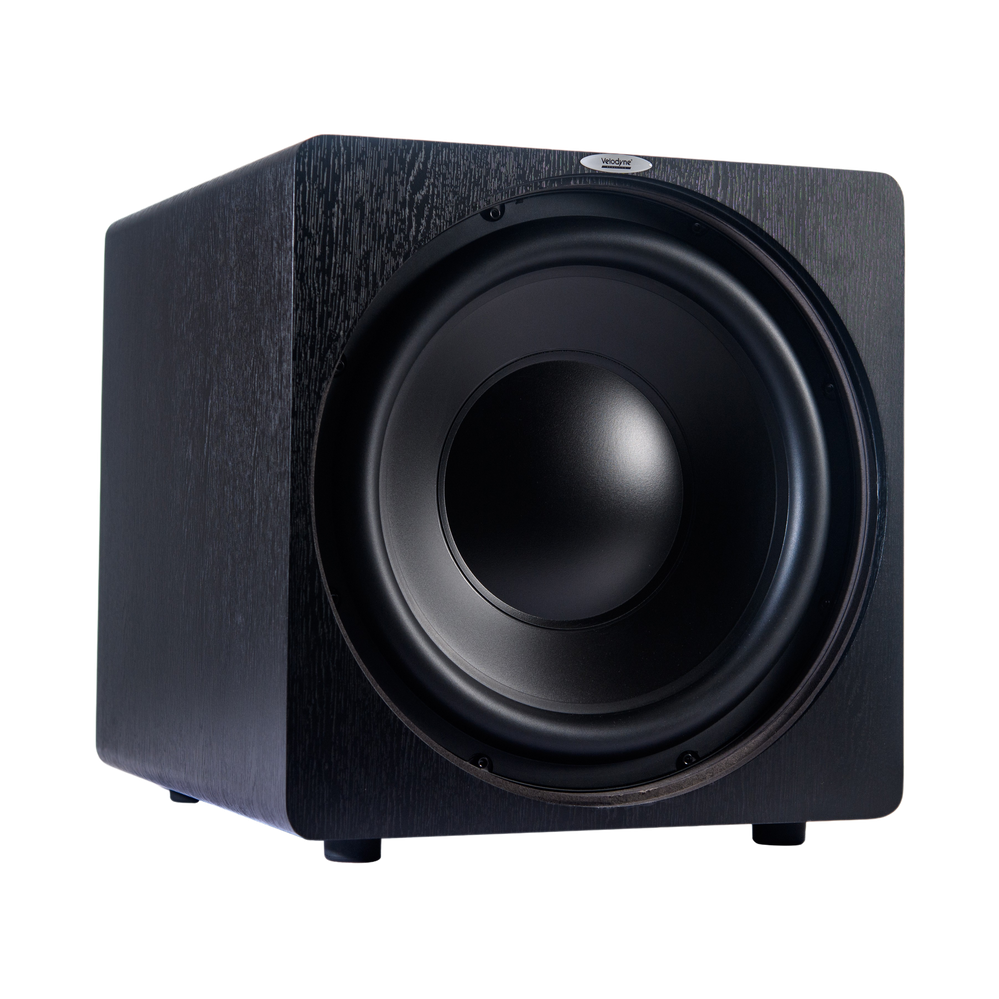

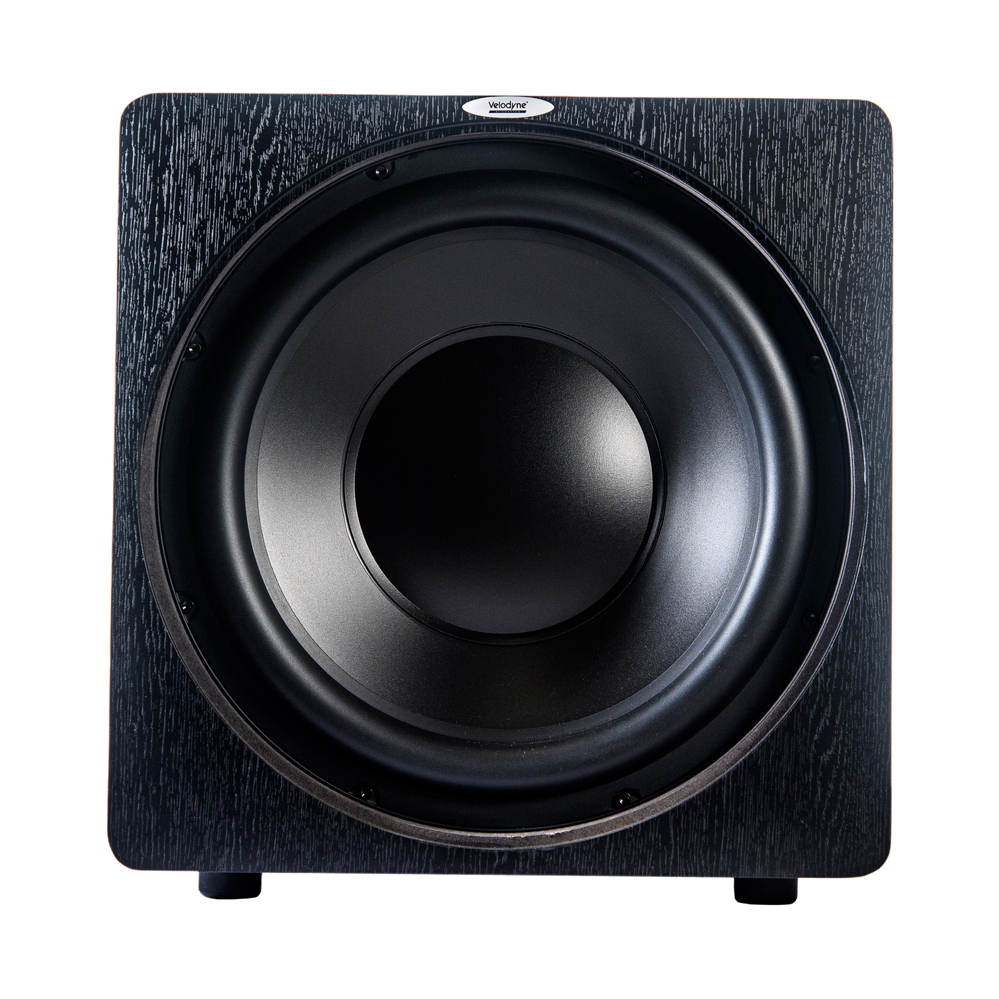

Deep Blue 15

Driver	15″ forward firing
Amplifier Class AB	1000 watts dynamic 450 watts RMS power
Frequency Response: Overall Frequency Response: (± 3 dB)	13 – 200 Hz 23 – 120 Hz
Low Pass Crossover	50 Hz to 180 Hz (12 dB/Octave)
Phase	0 to 180 degrees
Cabinet Design	MDF Closed Box with 52mm / 2” front Baffle
Magnet Structure	Dual ferrite magnet motor
Woofer	15” high excursion double vented basket driver with PP inforced Membrane
Voice Coil	Four Layer 3″ / 75mm Voicecoil
Input	GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
Output	Gold plated LFE /RCA
Power Selector	Off / Auto / On
Finishes	Black
Dimensions (W/H/D) (includes feet and connectors)	42,5 x 44,5 x 48,8 cm
Weight (approx)	23 kg
Shipping Weight (approx)	25,5 kg
