Velodyne Acoustics VI-Q Subwoofers

Vendor: Velodyne

Type: subwoofer

Model: VI-Q 10

VI-Q 10 VI-Q 12 VI-Q 15

Color: matte-black

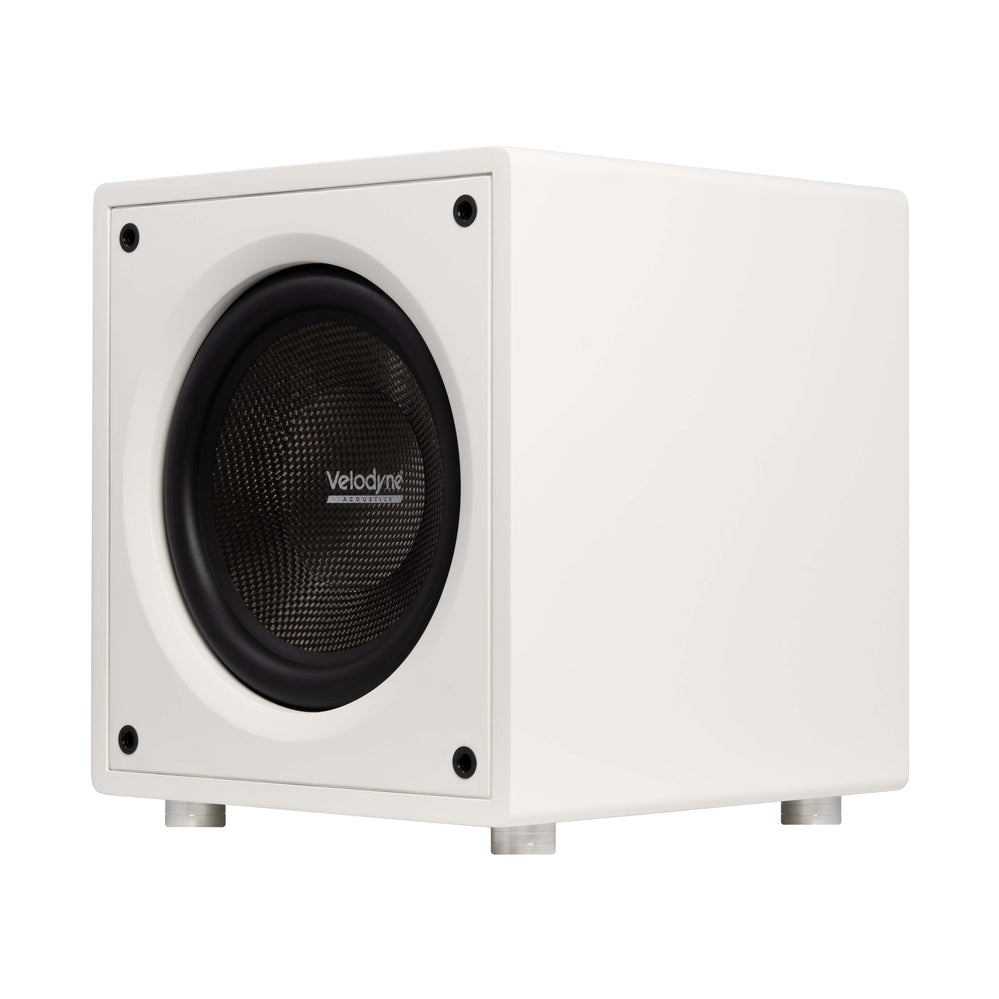

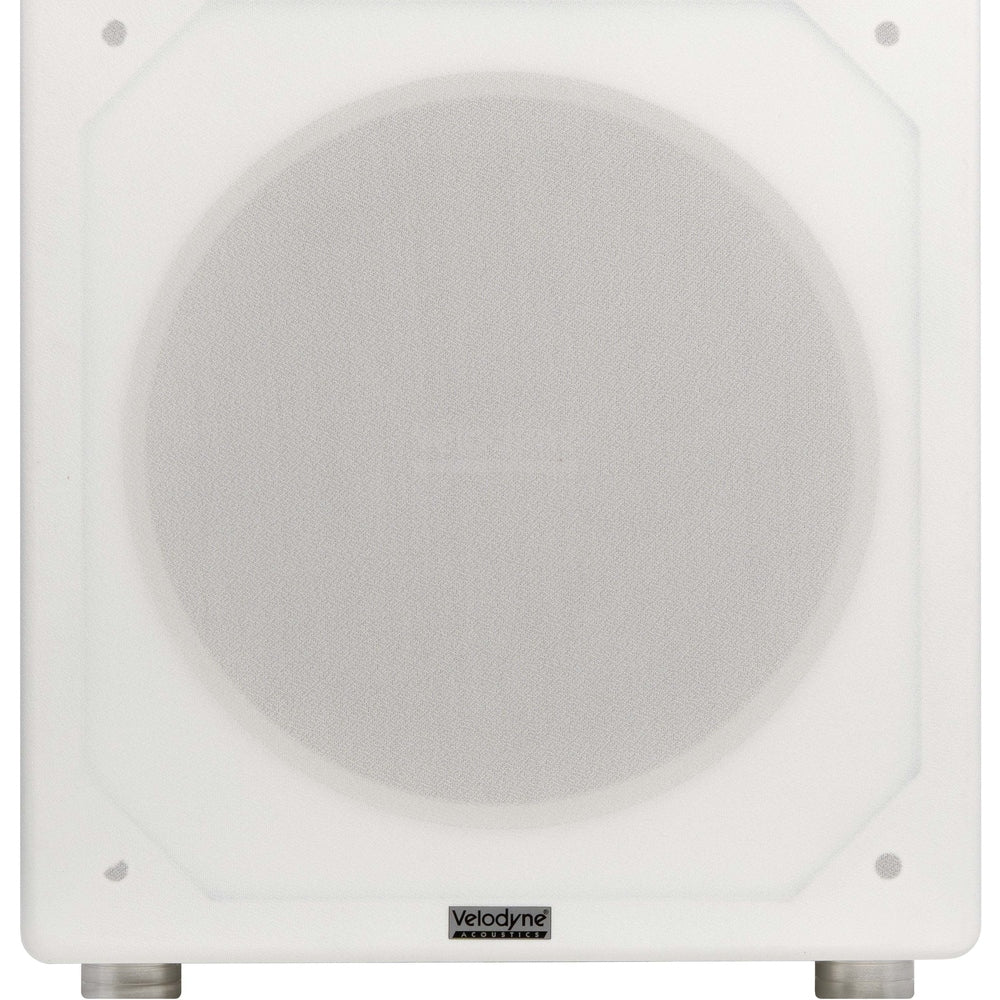

matte-black matte-white

RRP: 10"-2299, 12"-2599, 15"-$3199

Low-frequency multi-talent with numerous connections
and the latest technology

*App is iOS only

The sealed cabinet design of the VI-Q series features everything that makes Velodyne Acoustics Subwoofers stand out in a modern way. In addition, the three models provide a particularly high-quality driver configuration and the iWoofer™ app (iOS only, Android not supported at this time), which gives users full control with room adjustment, a 25-band parametric equalizer, and presets.

Specifications Images Downloads

The Features

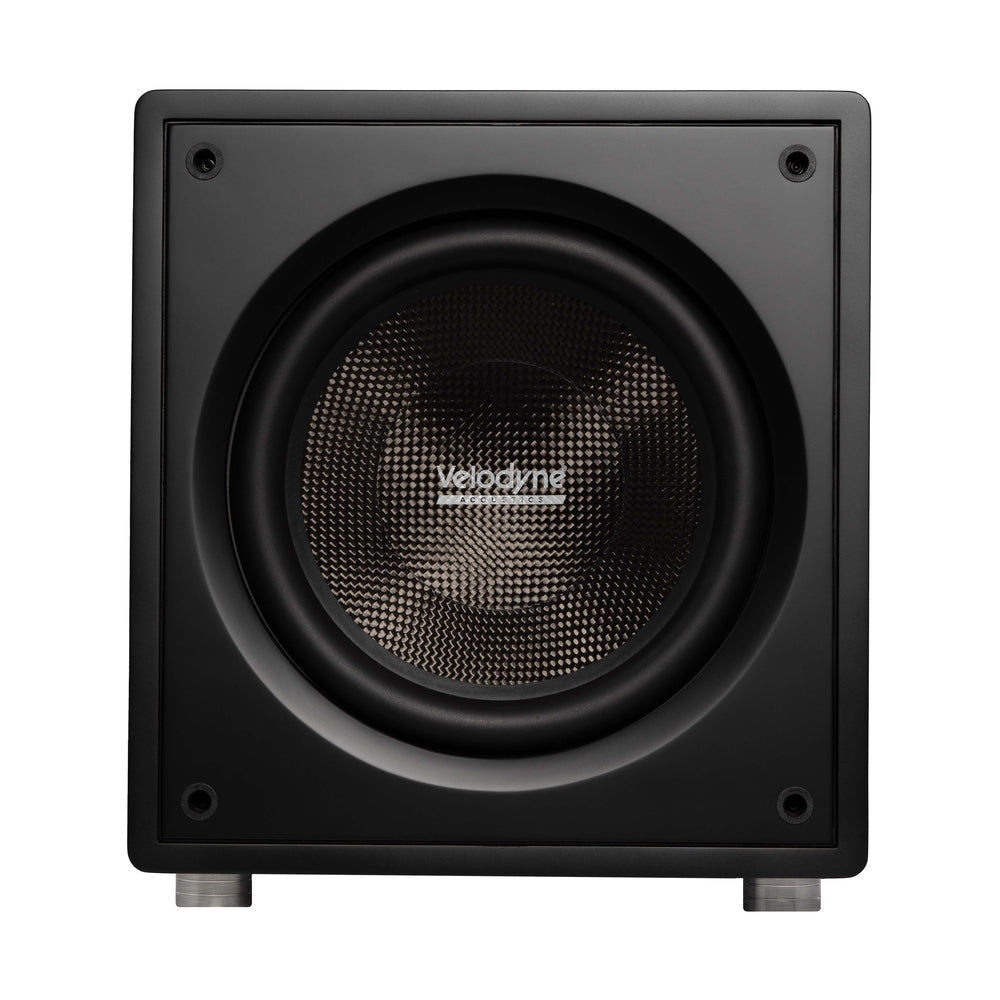

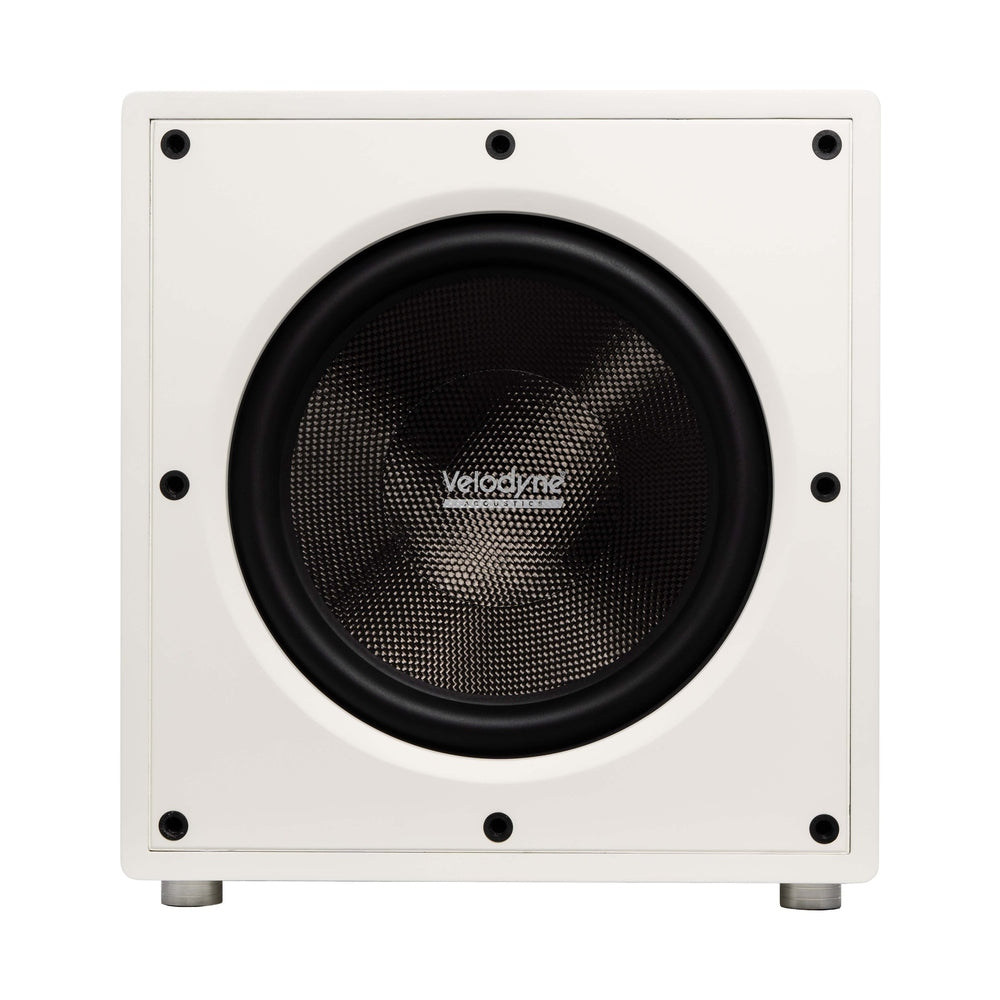

The lightweight carbon fiber cone, in conjunction with the 3-inch voice coil, ensures optimum partial vibration behavior with low distortion values
High power with up to 650 W RMS Class-D amplification with 1200 W maximum power; highly efficient switching power supply with 2 x 25 A / 650 V MOSFET transistors
Solid front made of a 21-layer plywood board with a material thickness of a full 50 millimeters

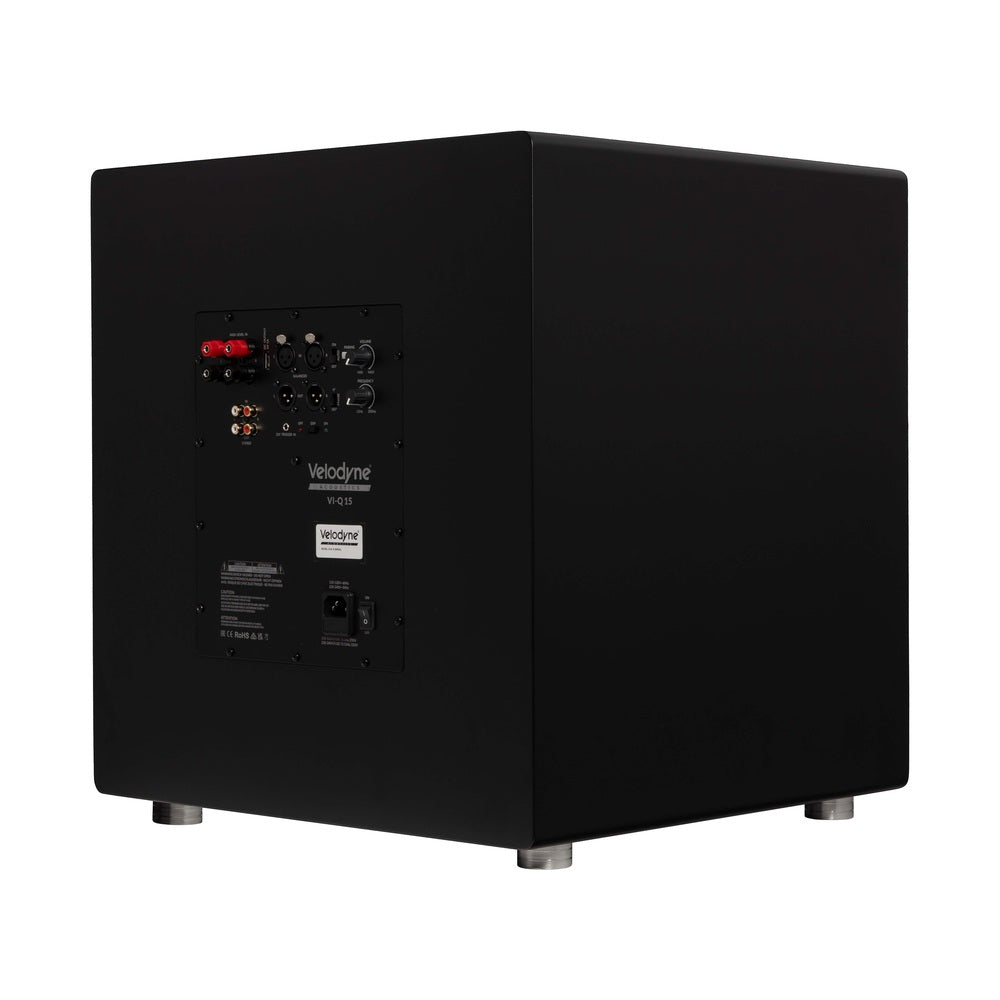

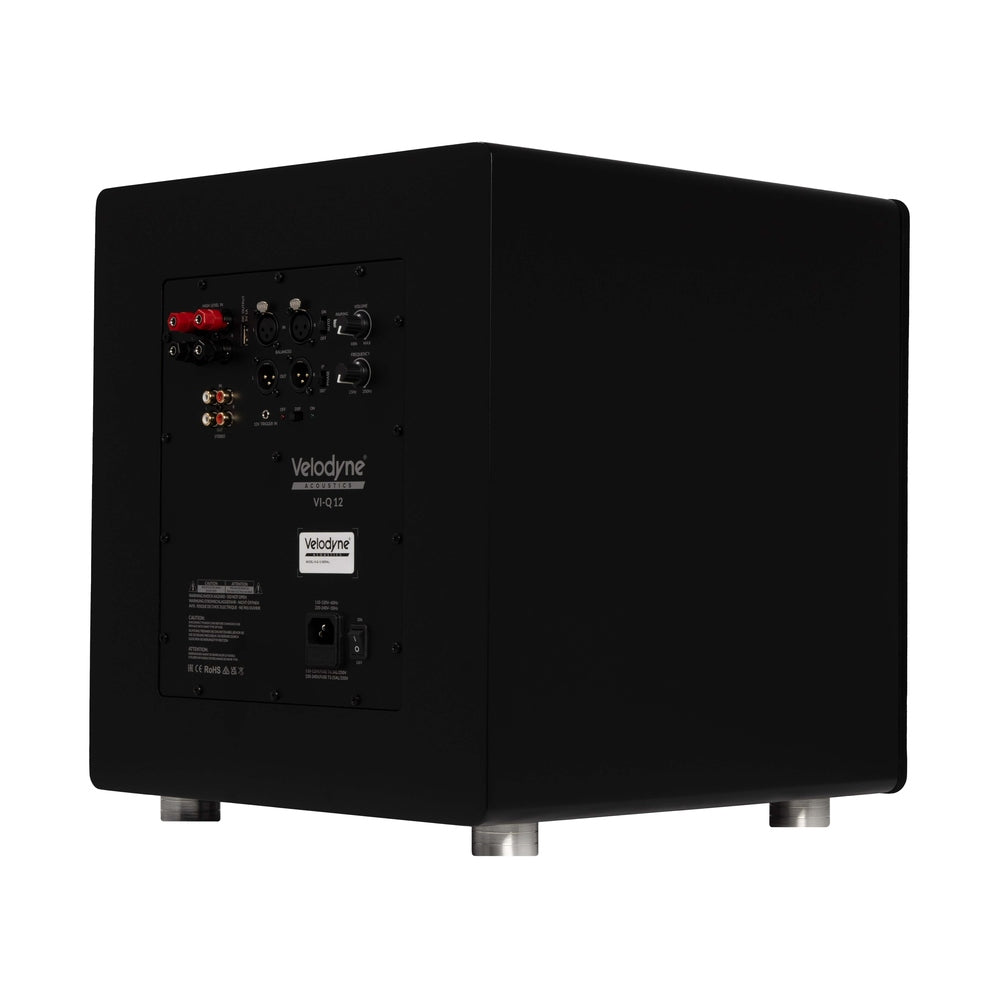

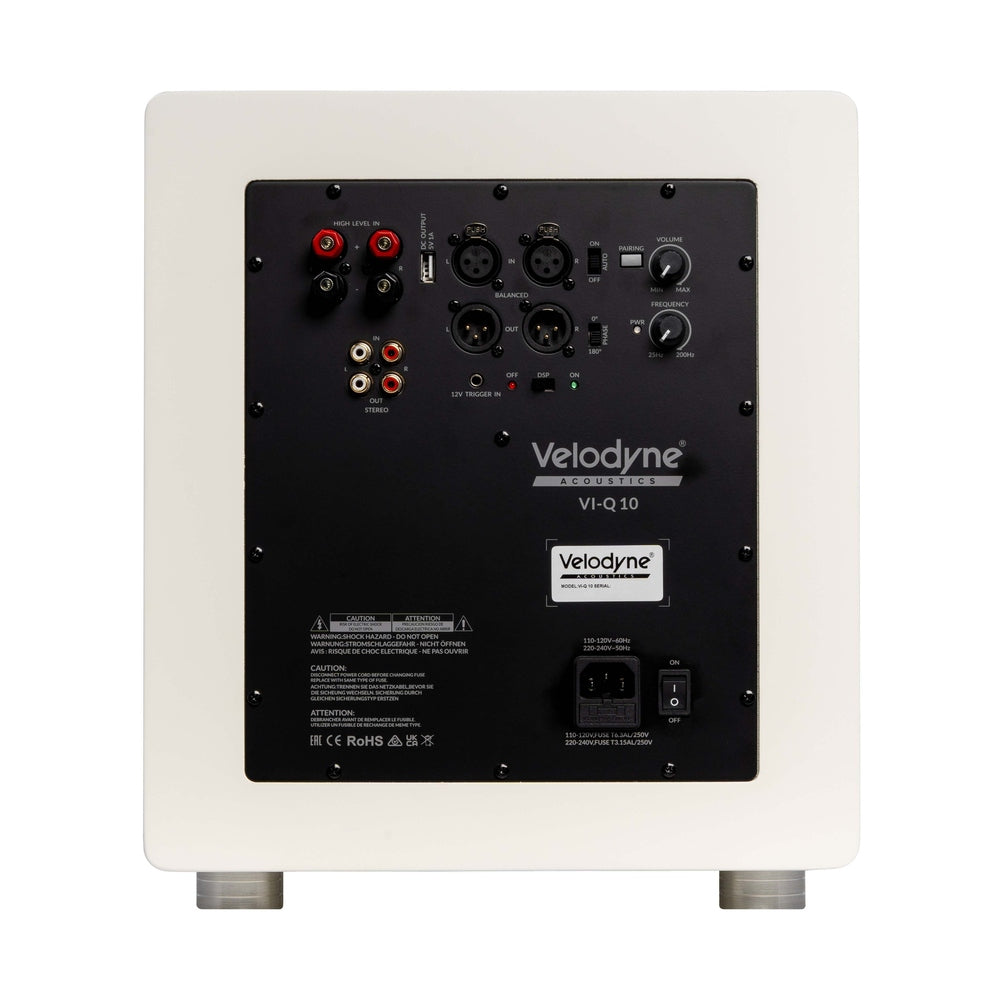

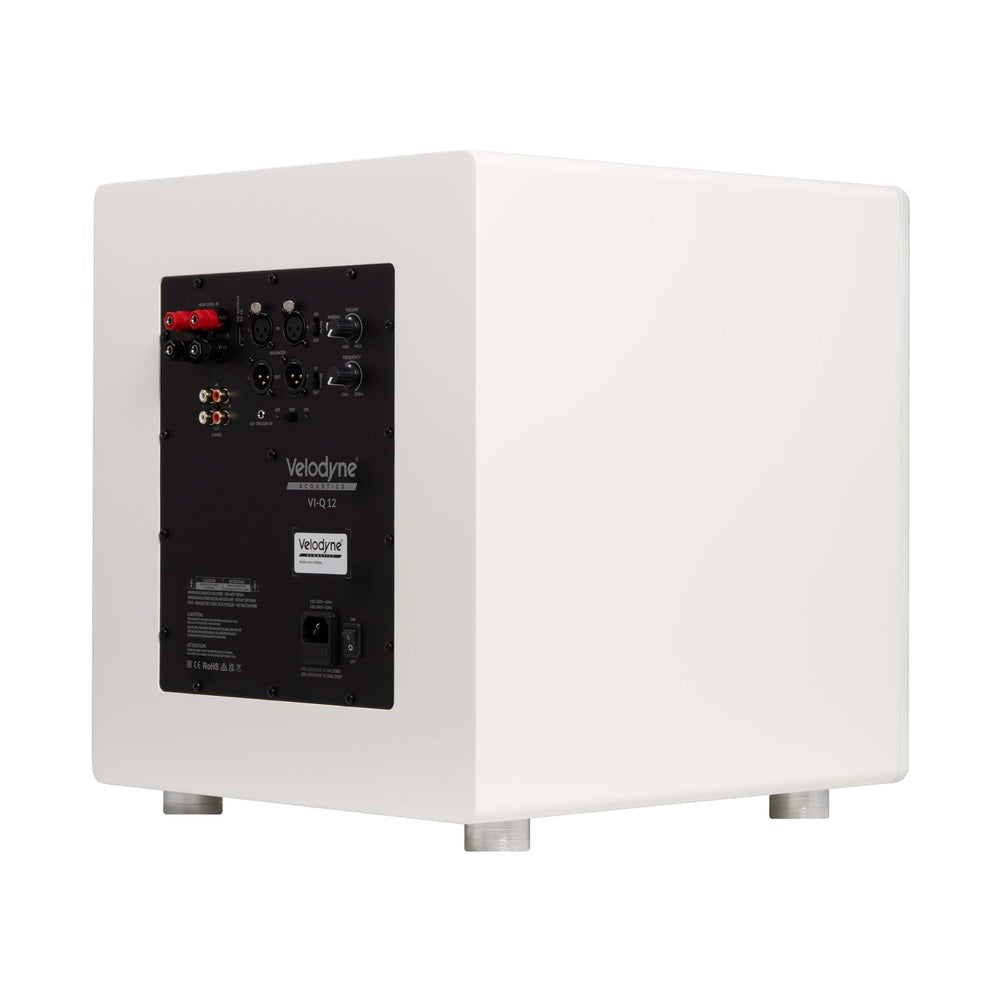

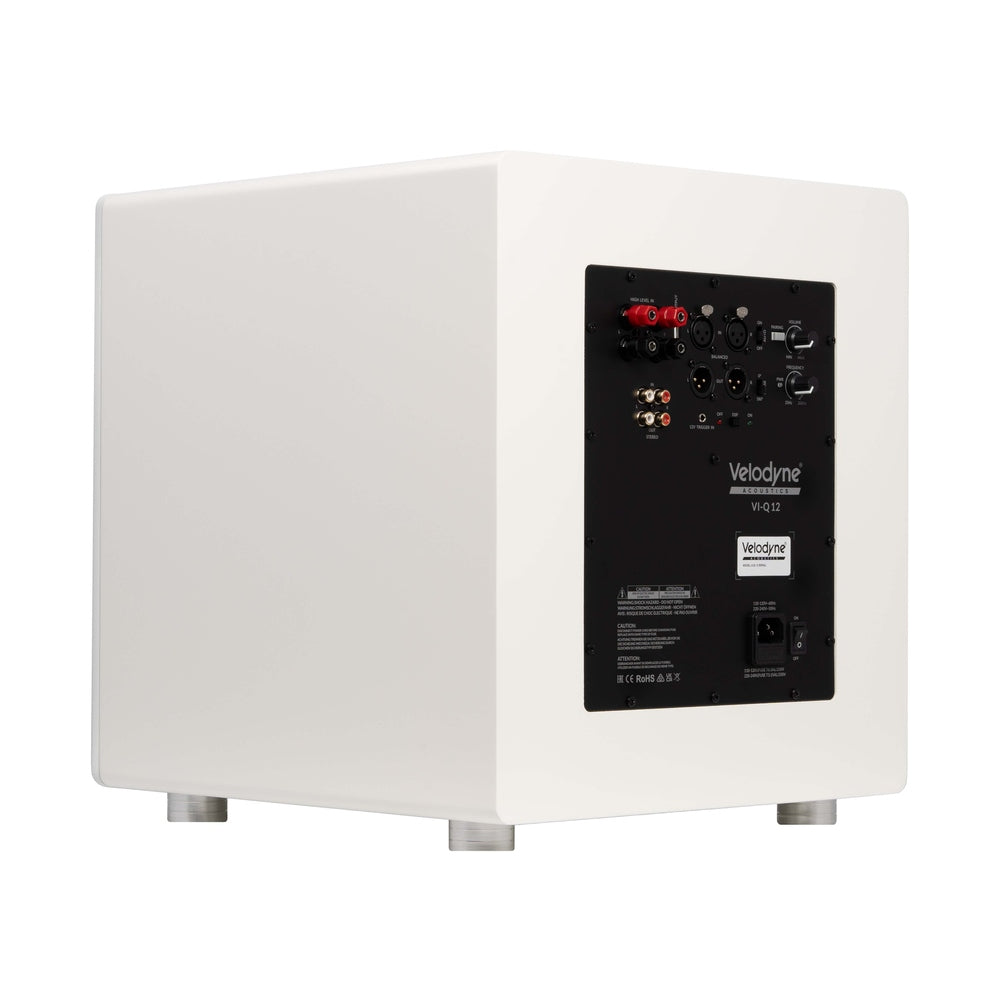

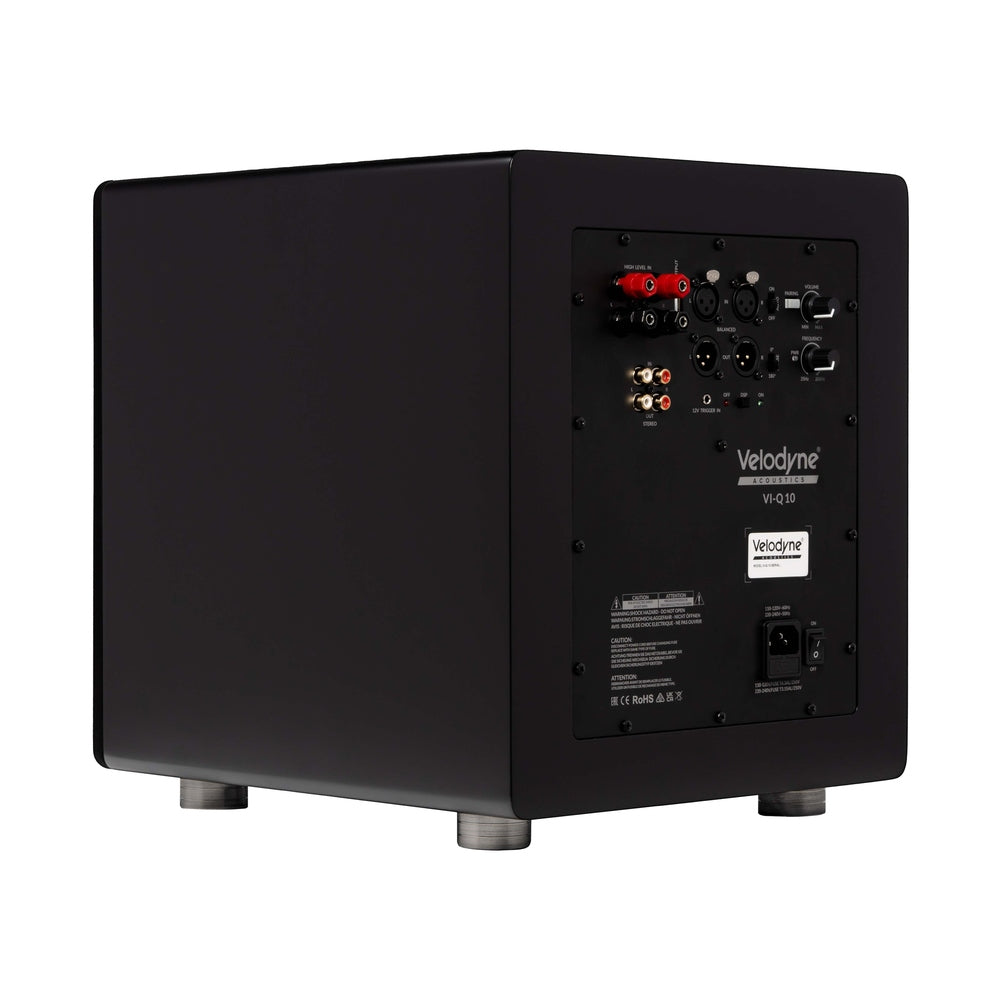

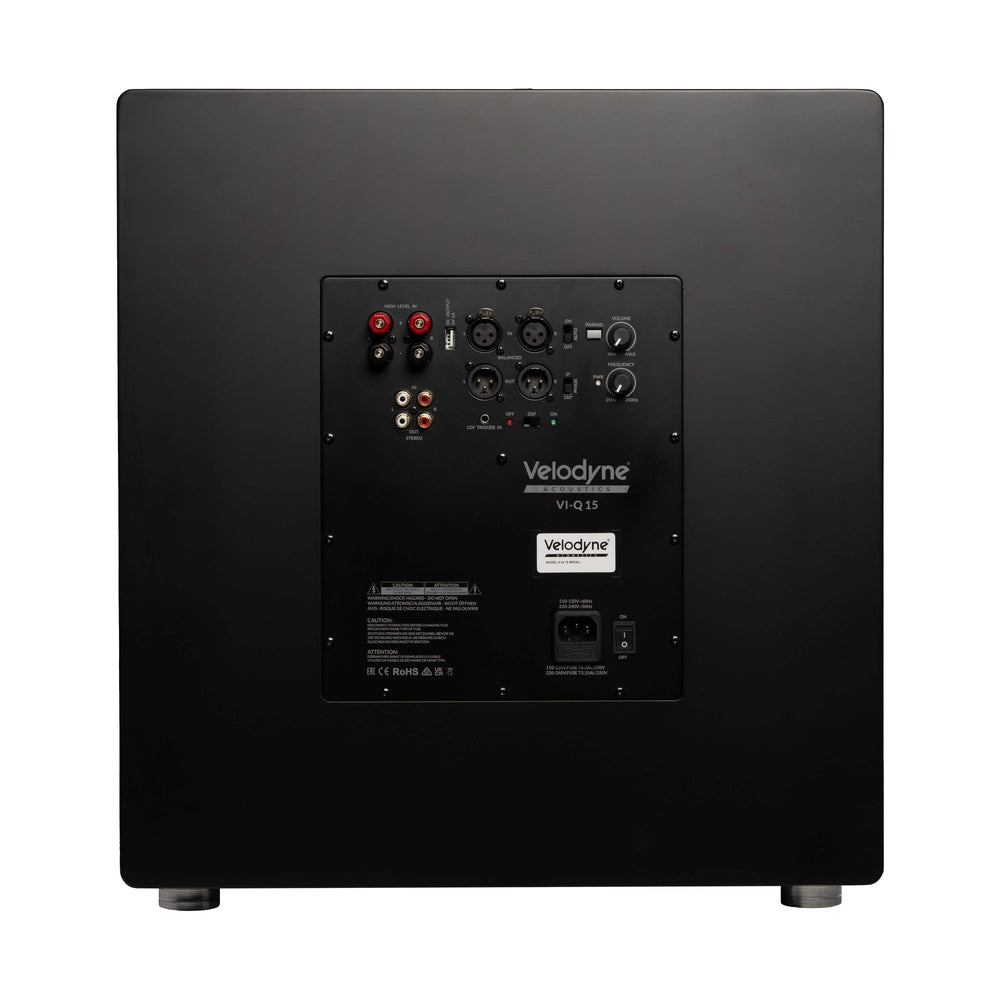

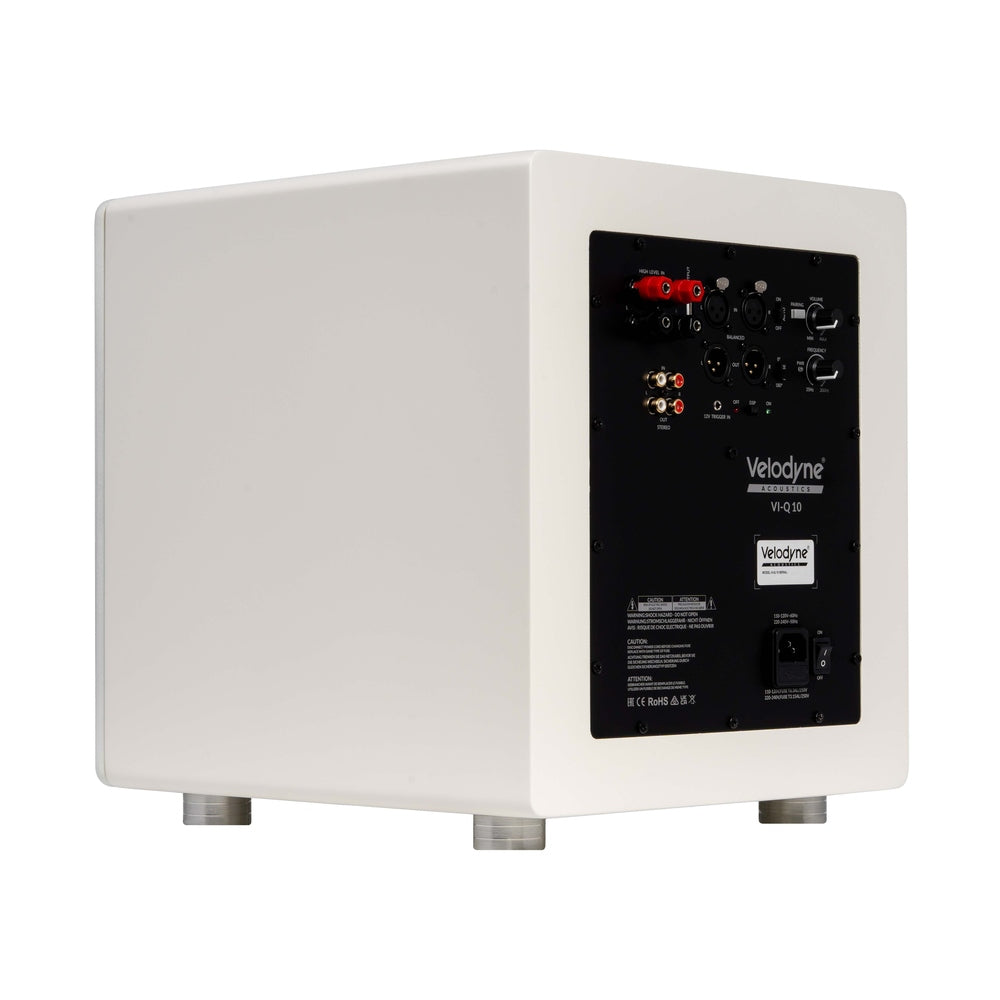

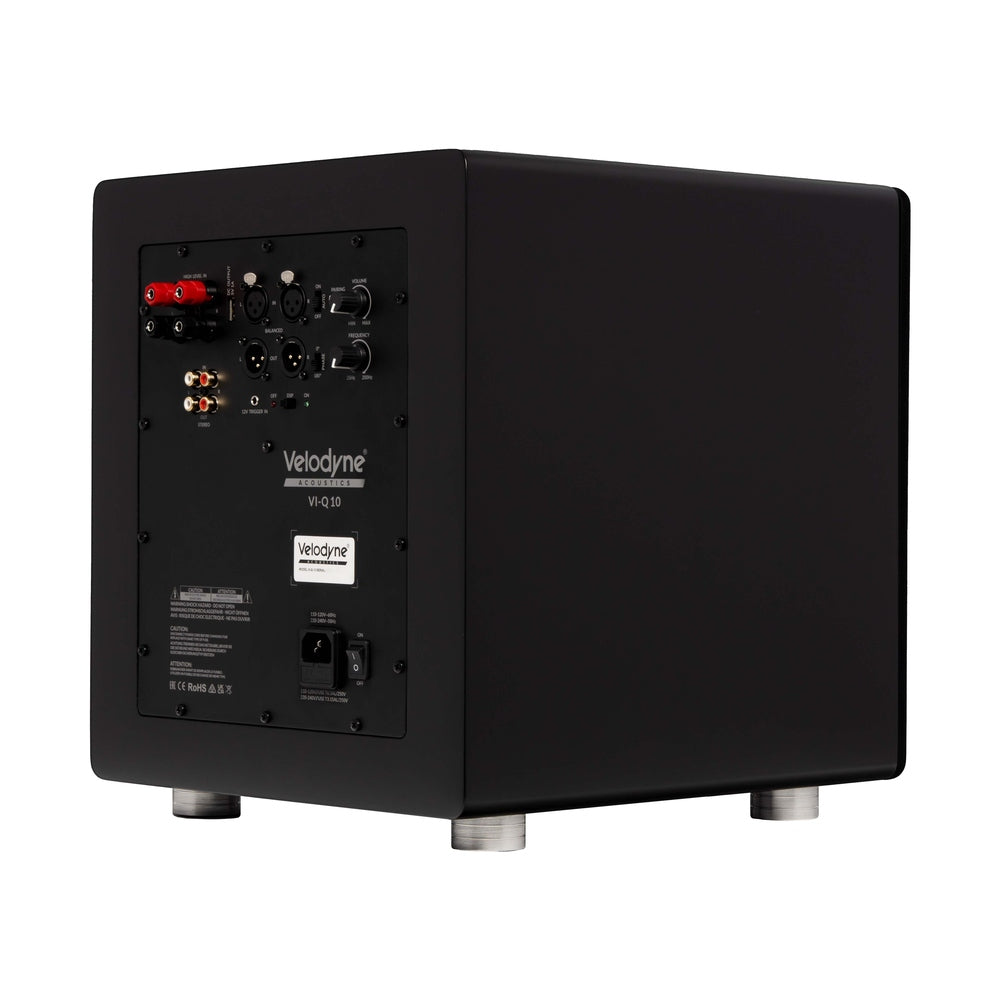

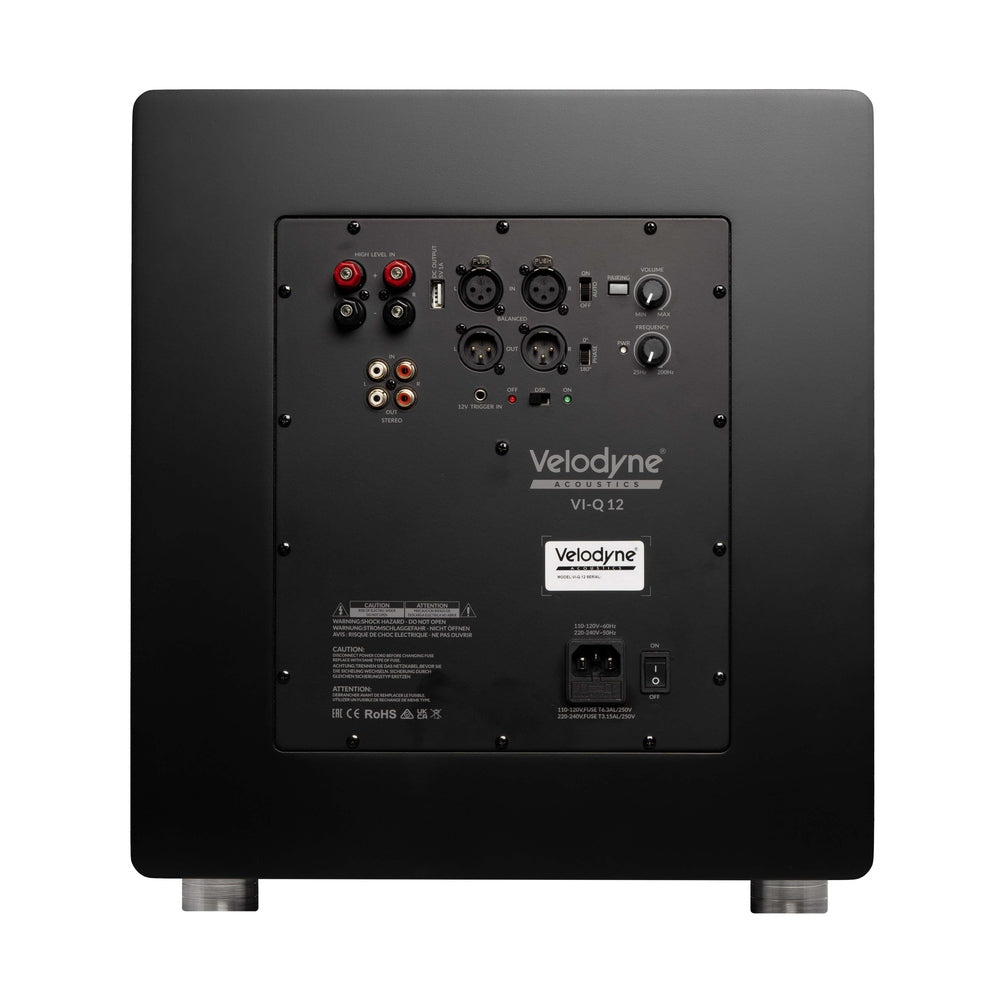

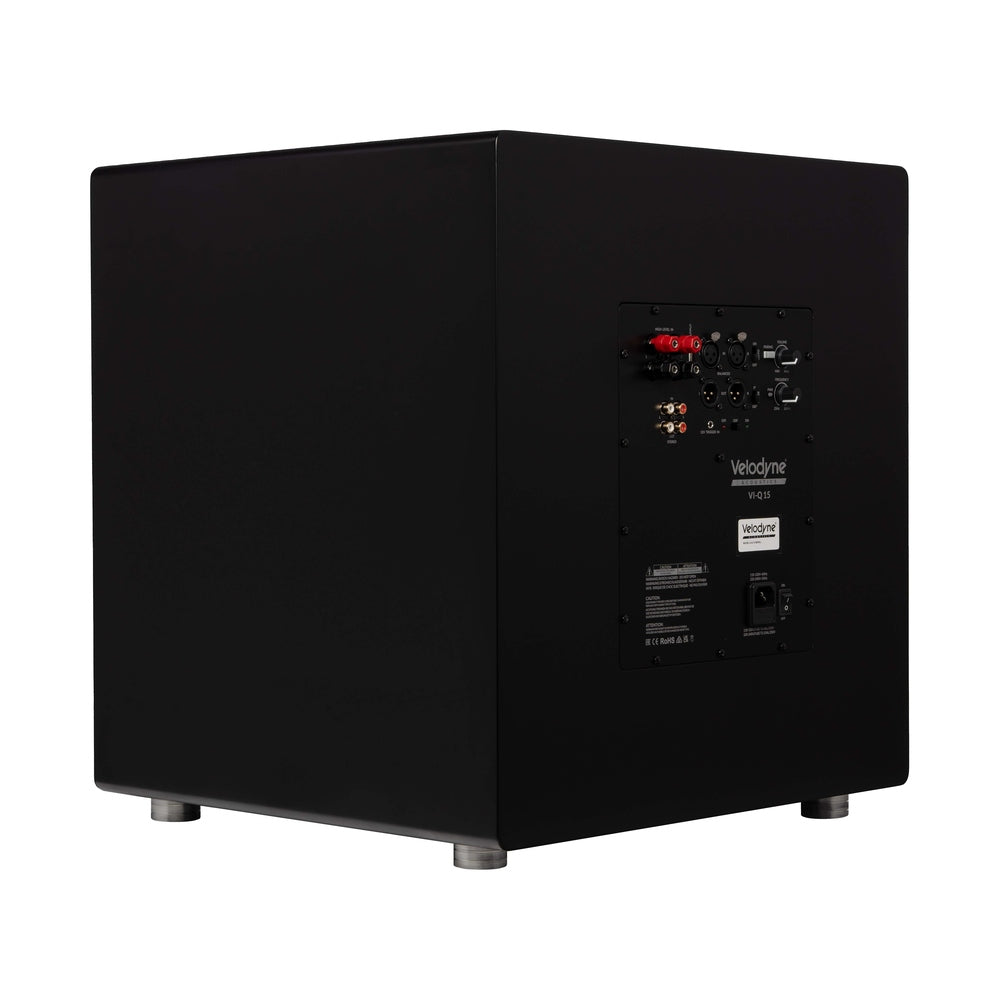

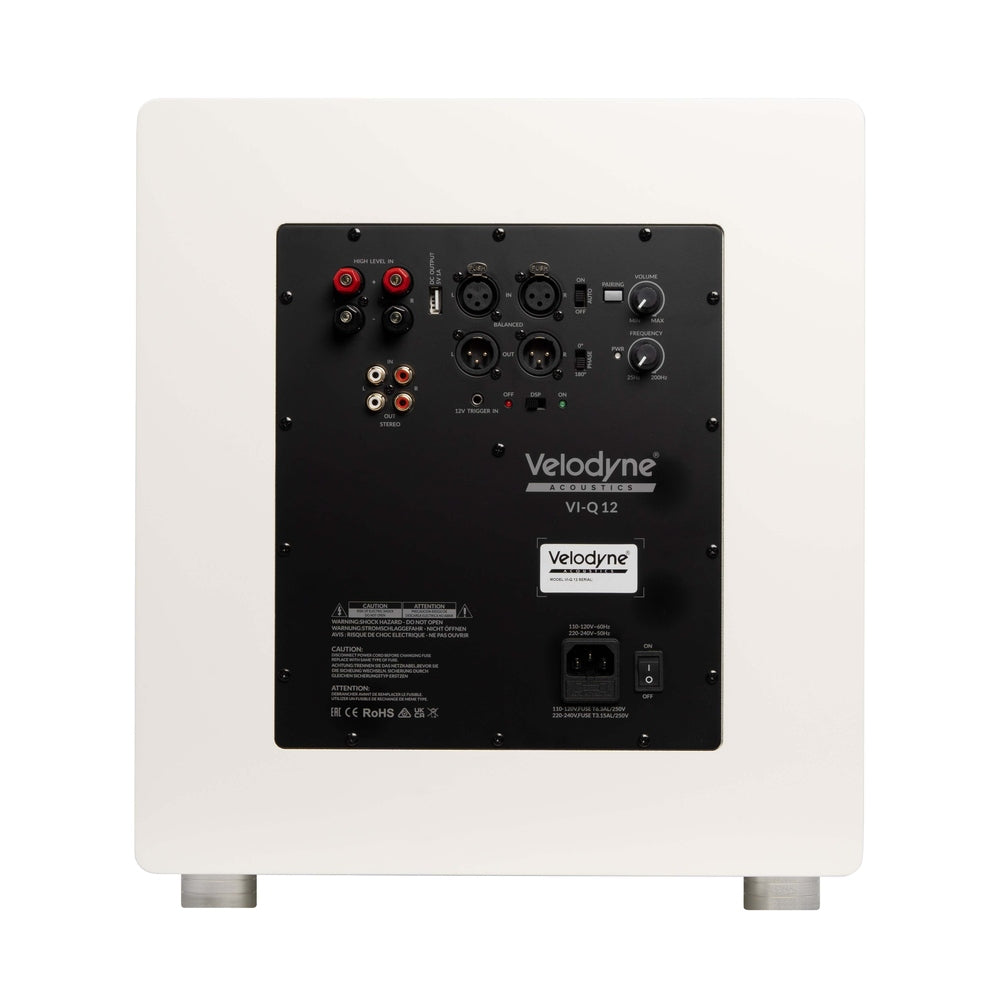

With its professional XLR connectors, RCA jacks for left and right channel and high-level connectors, the best connectivity is guaranteed

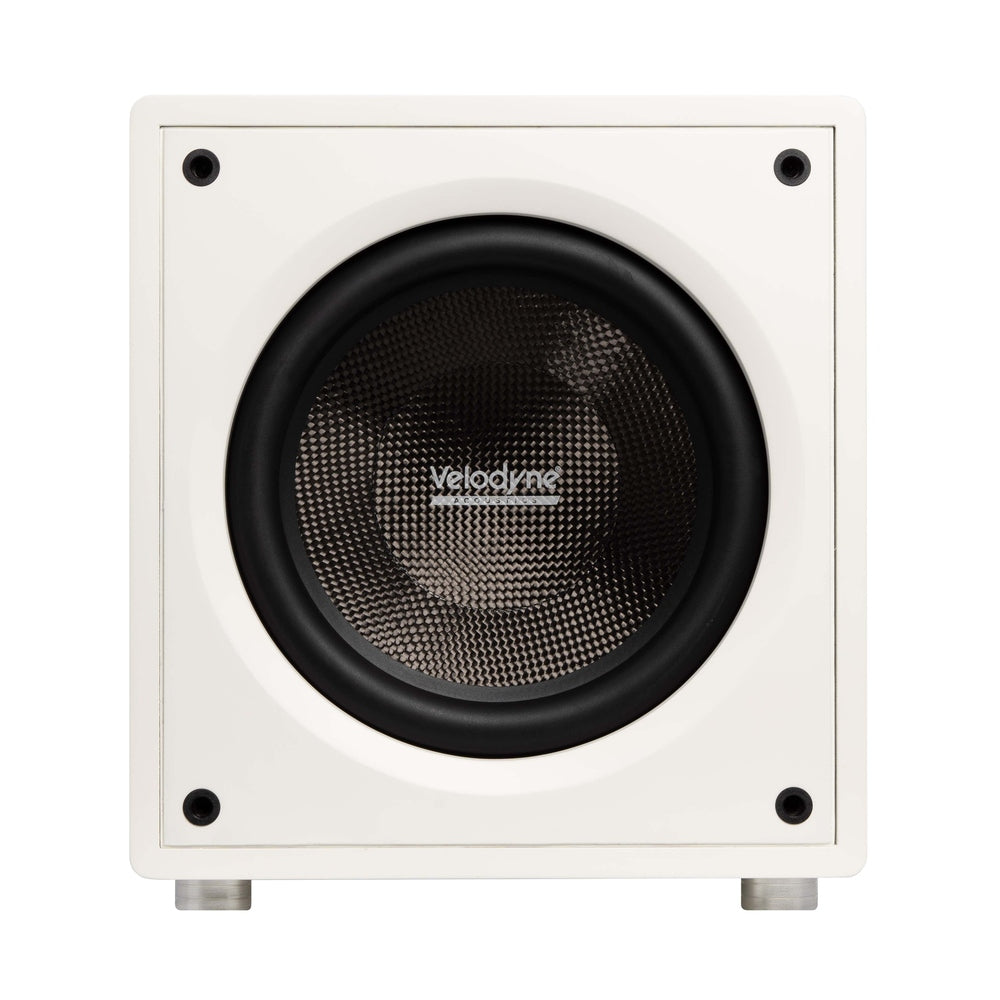

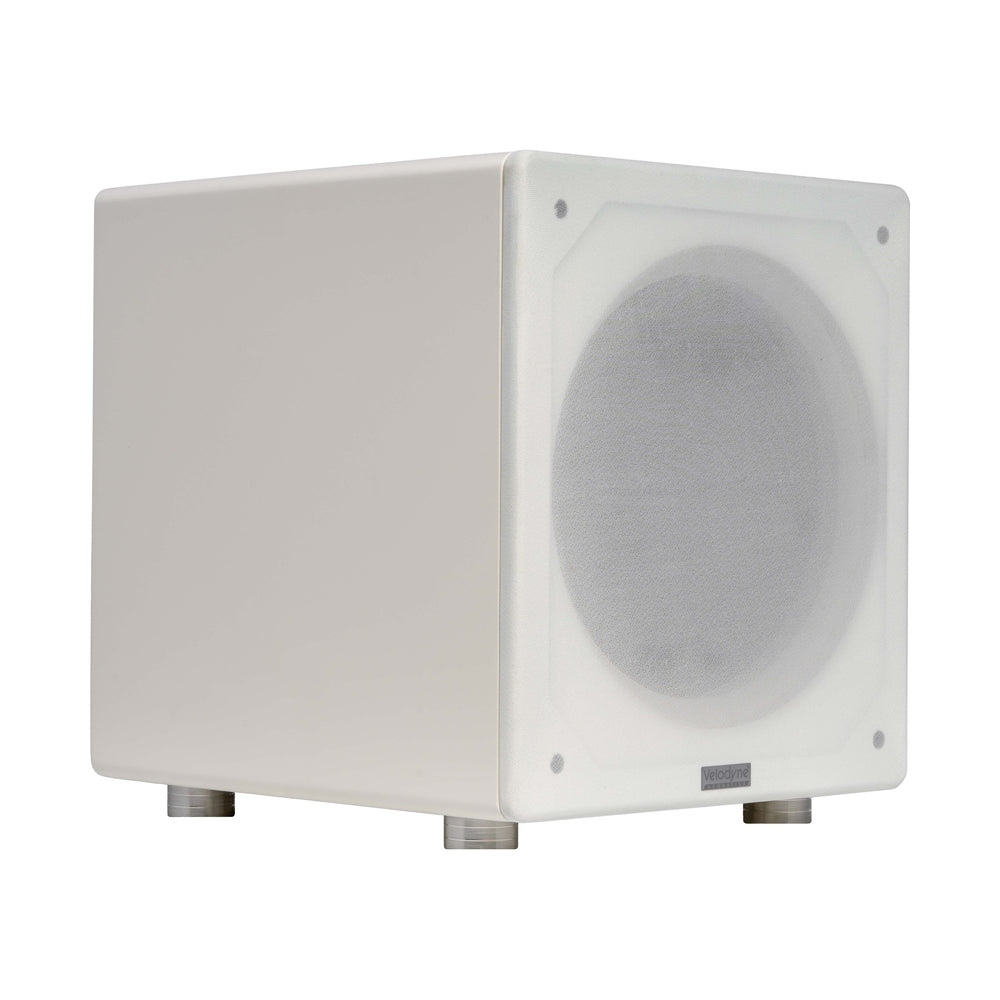

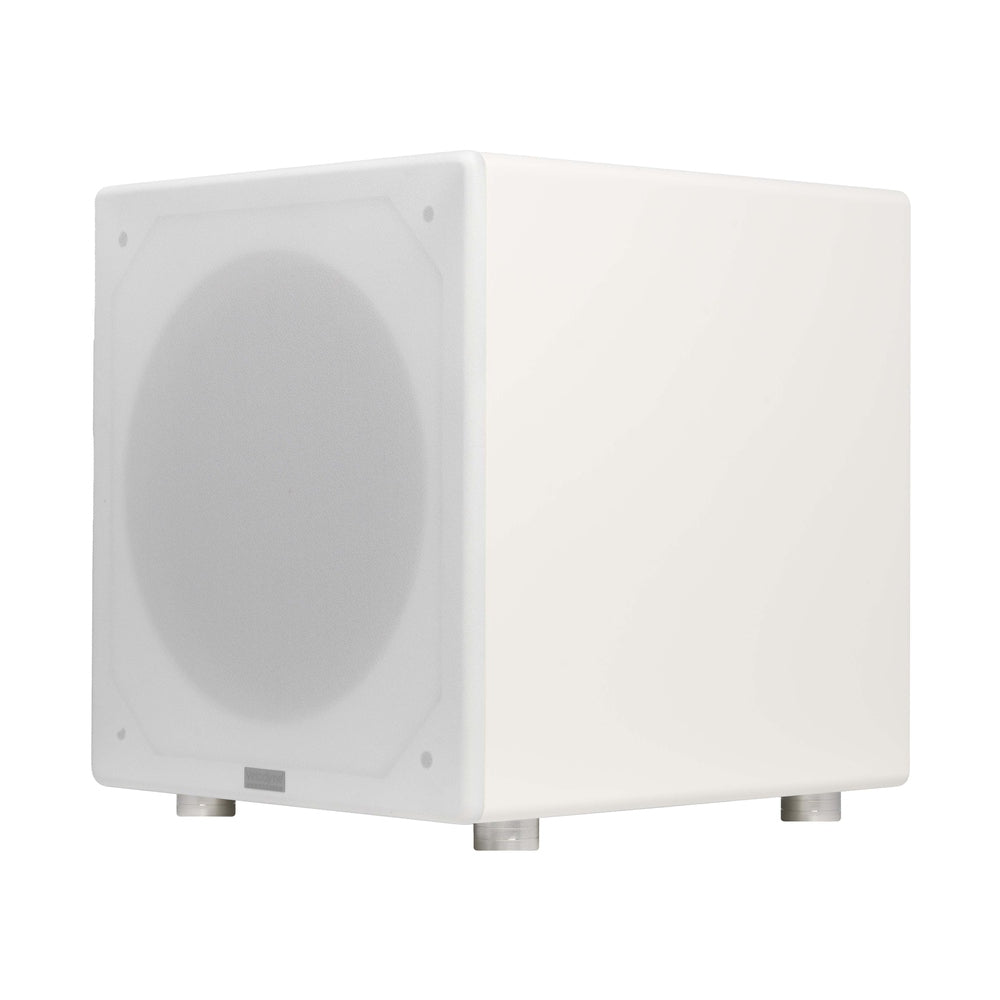

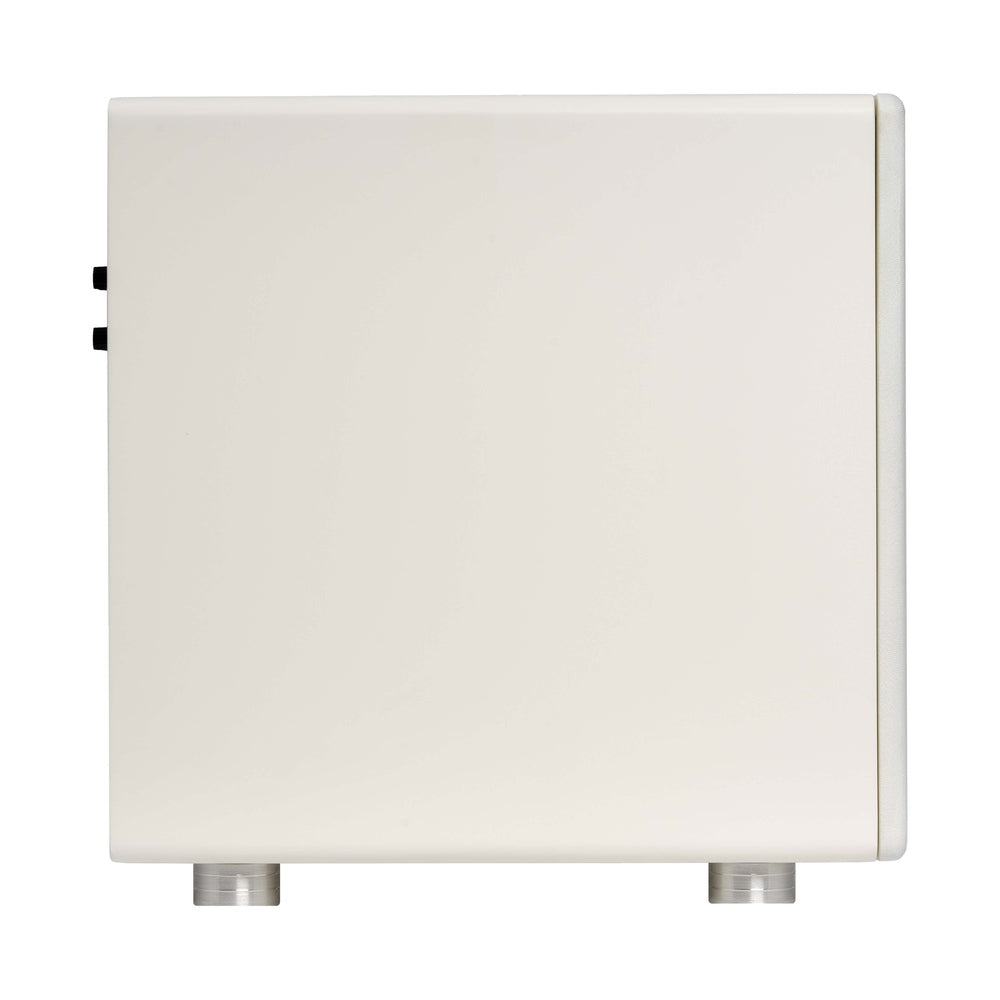

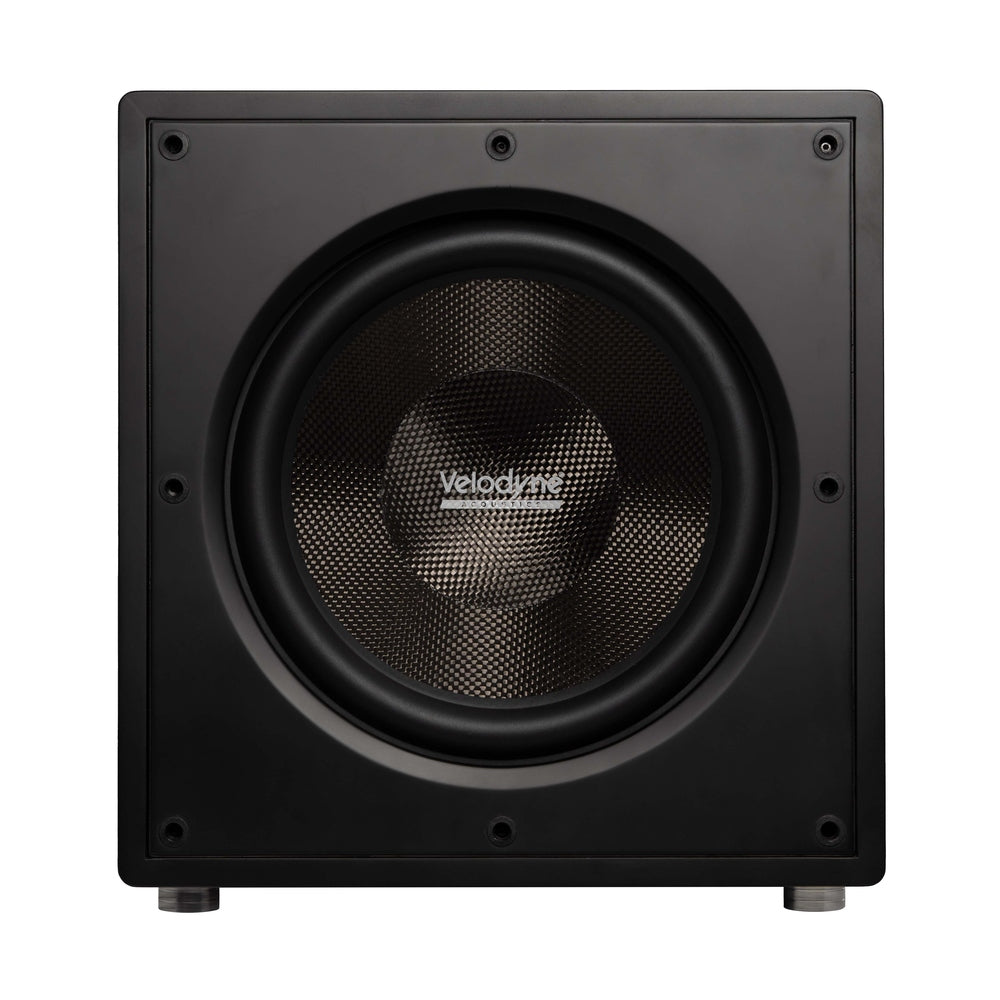

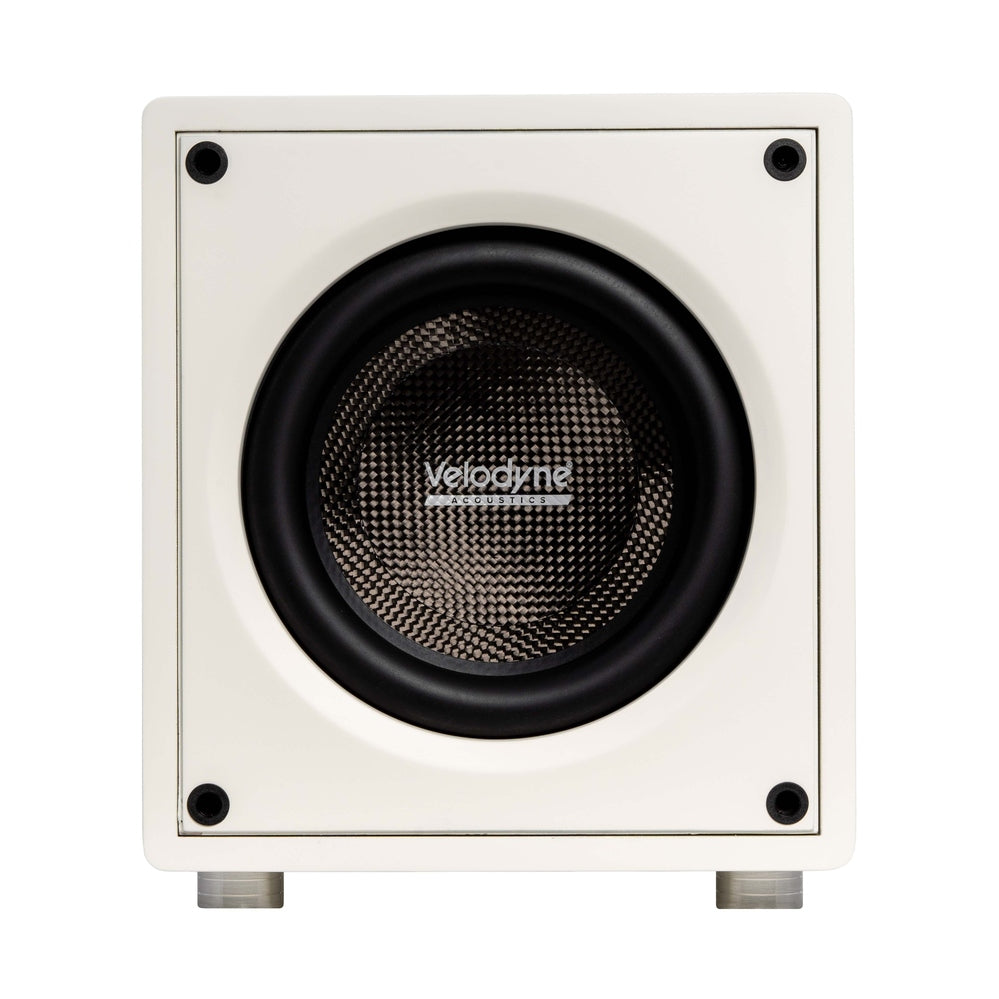

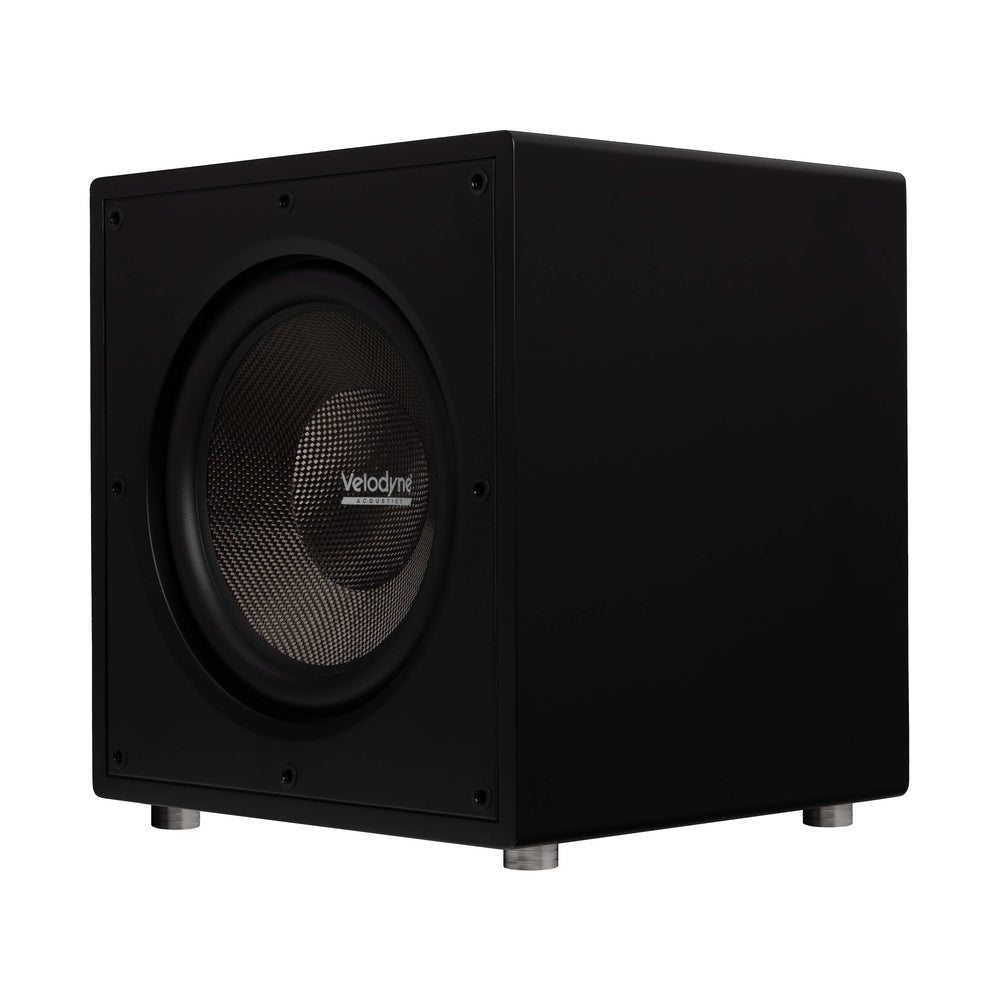

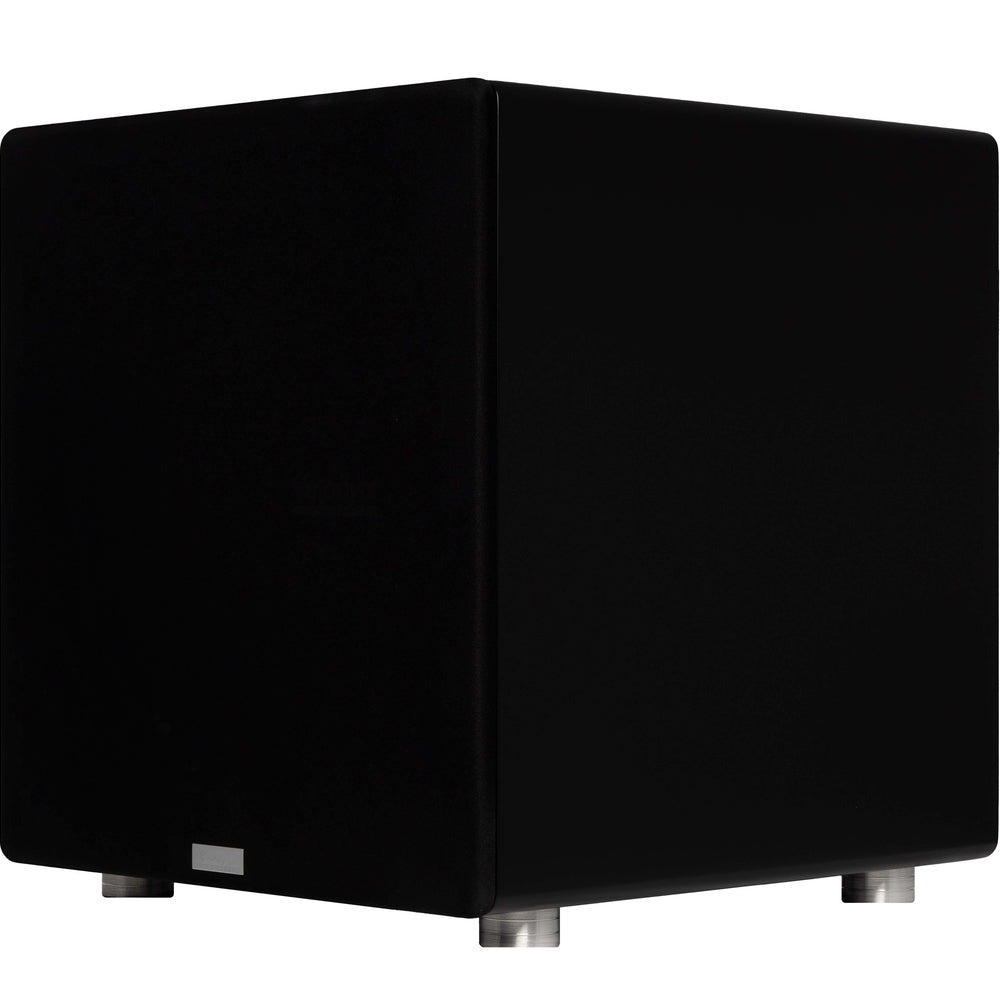

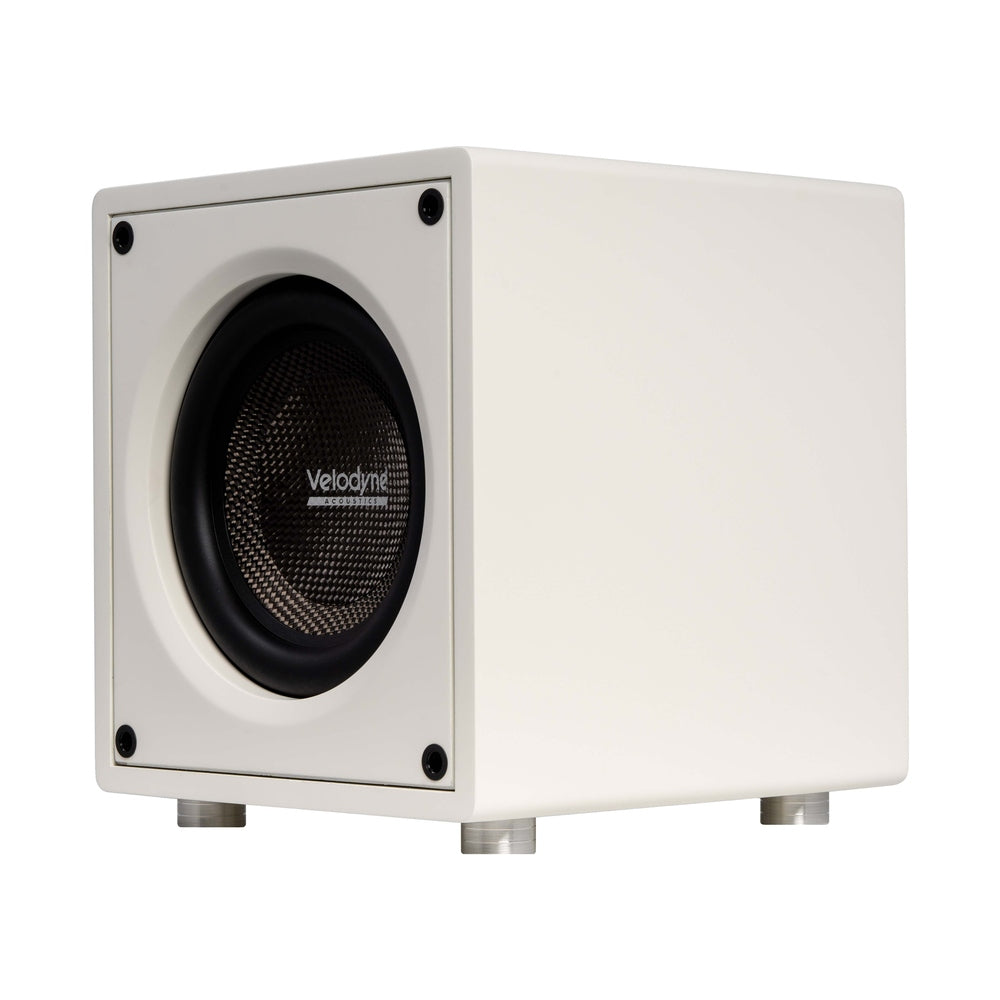

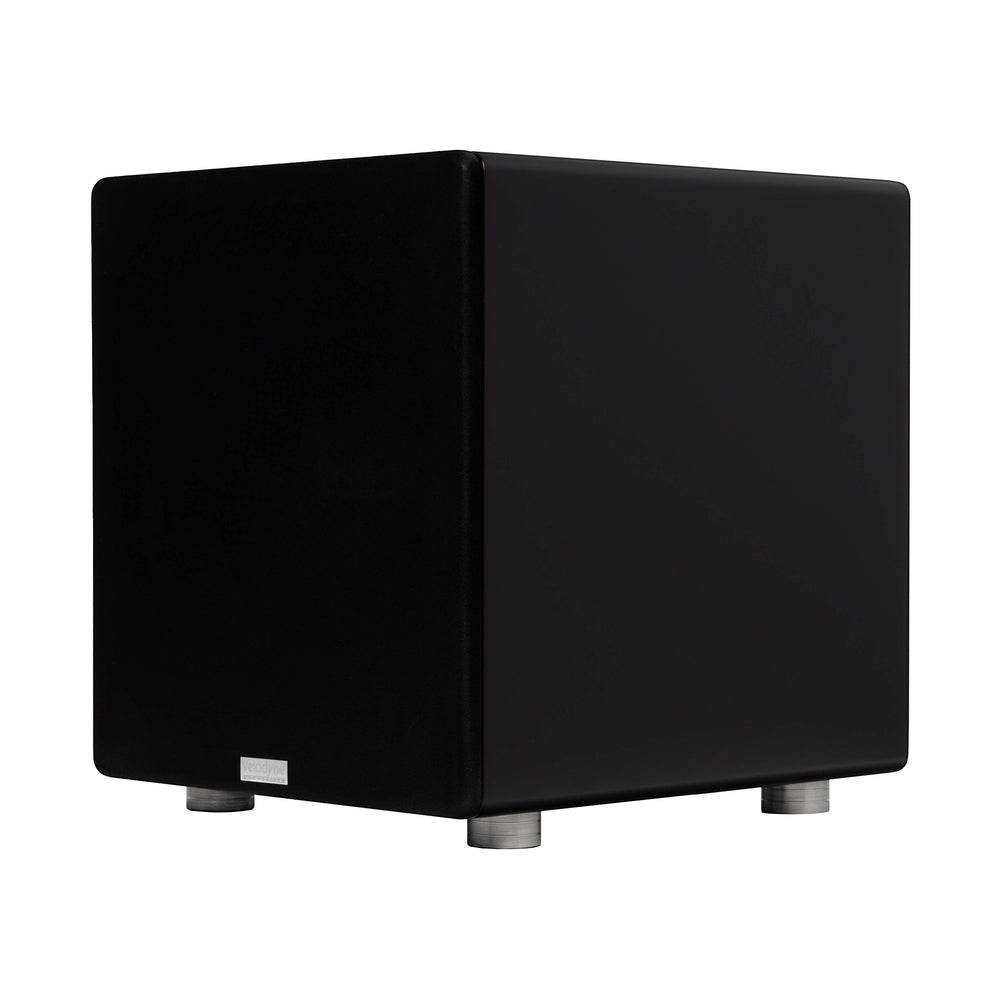

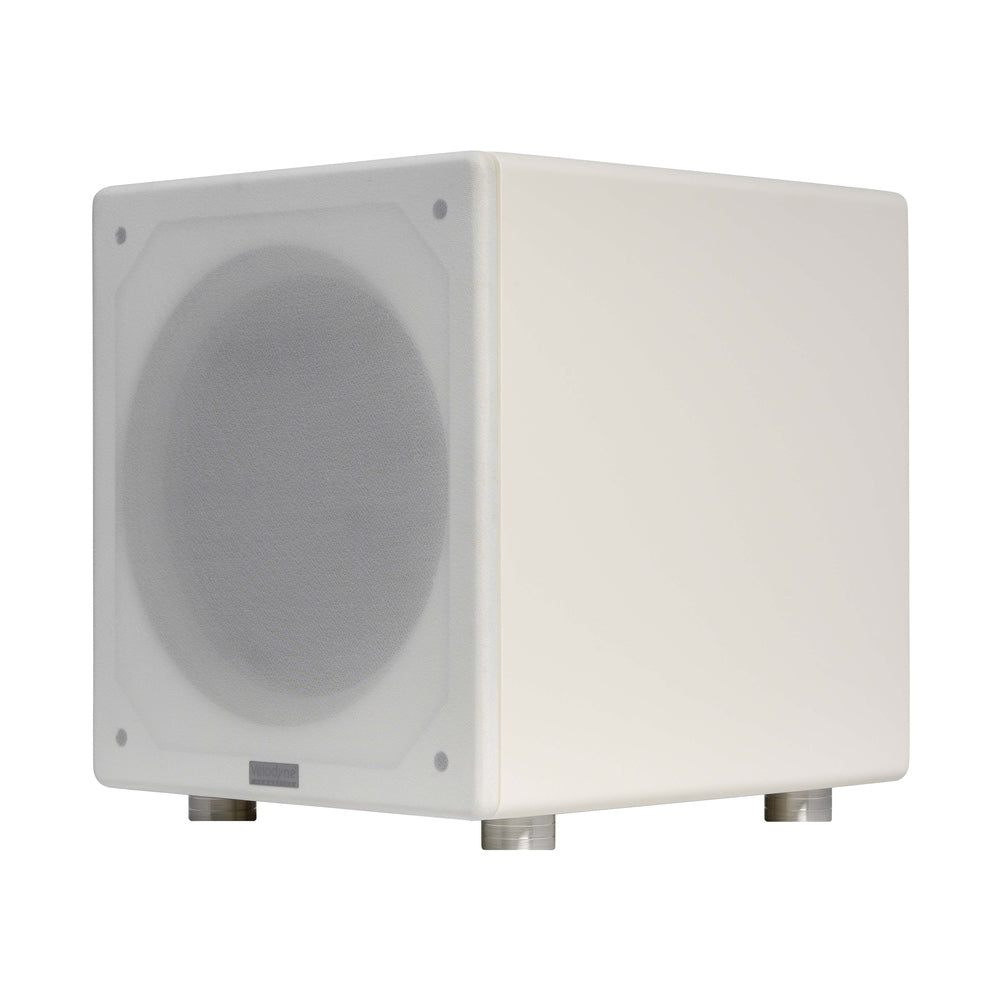

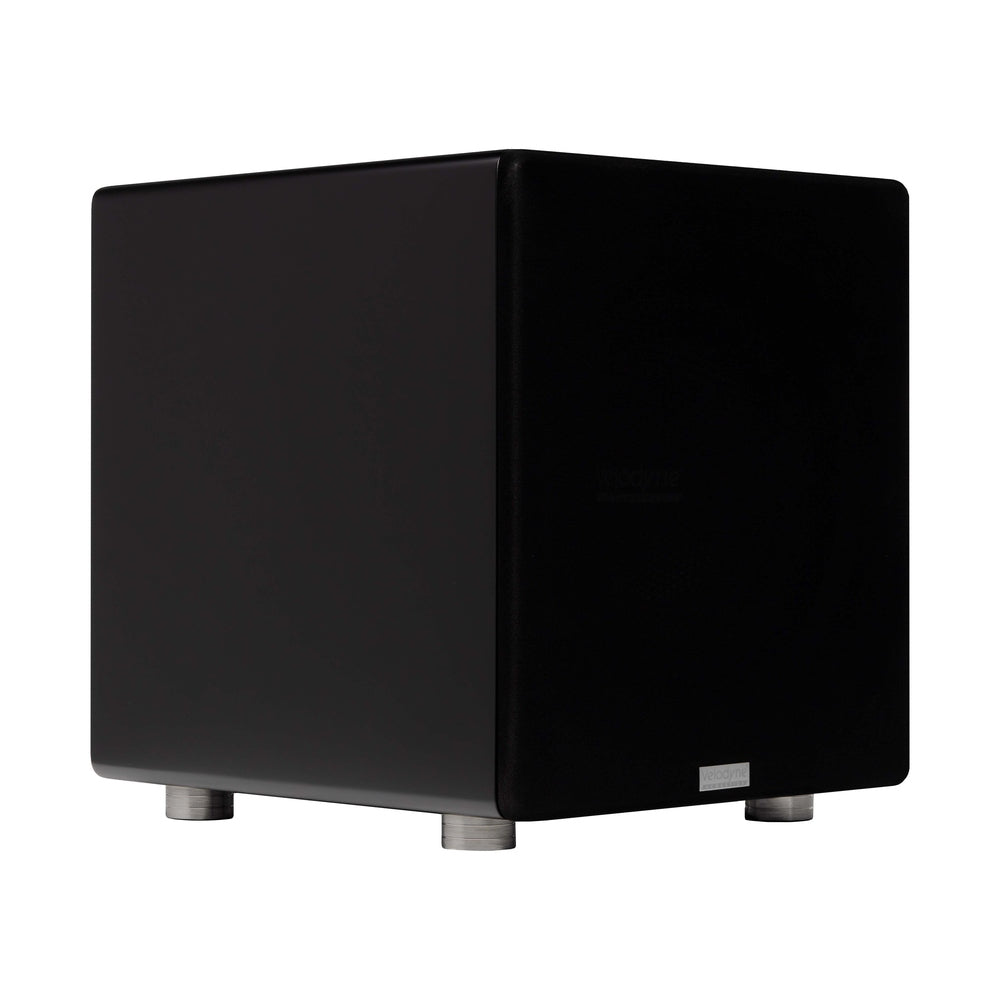

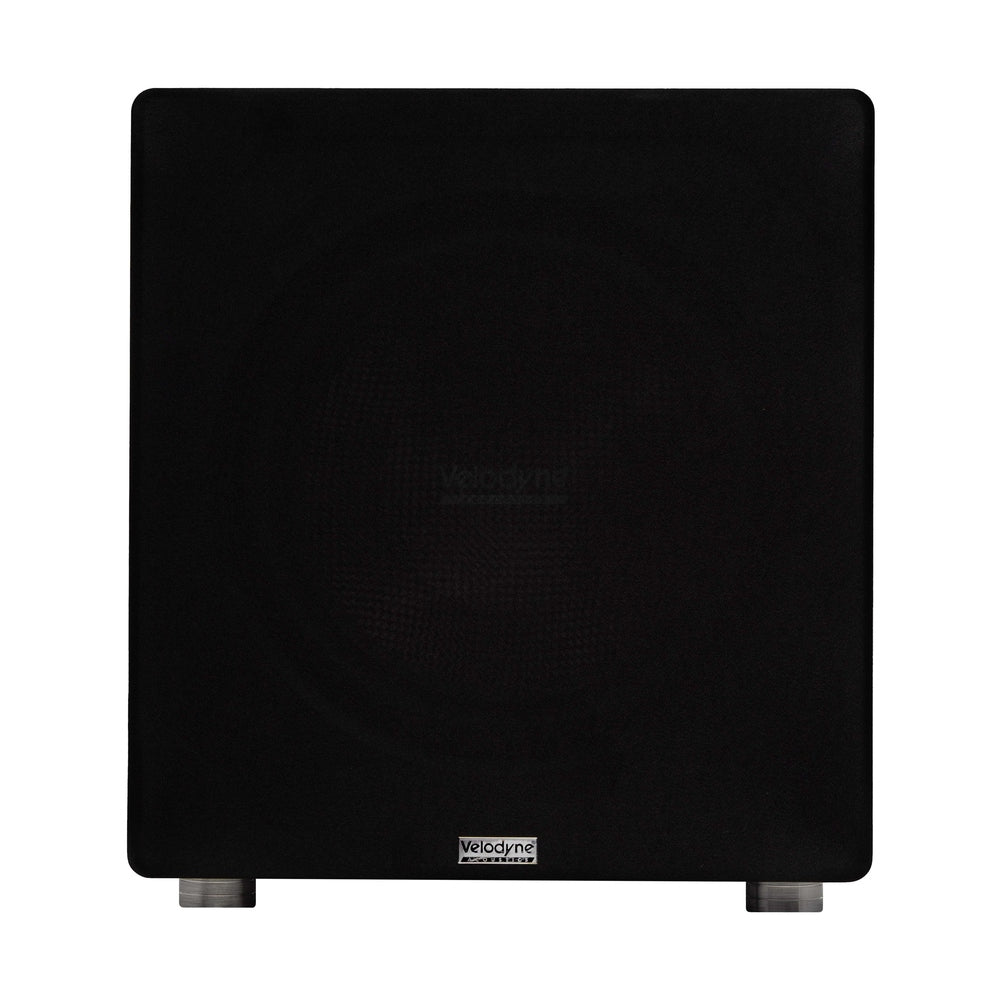

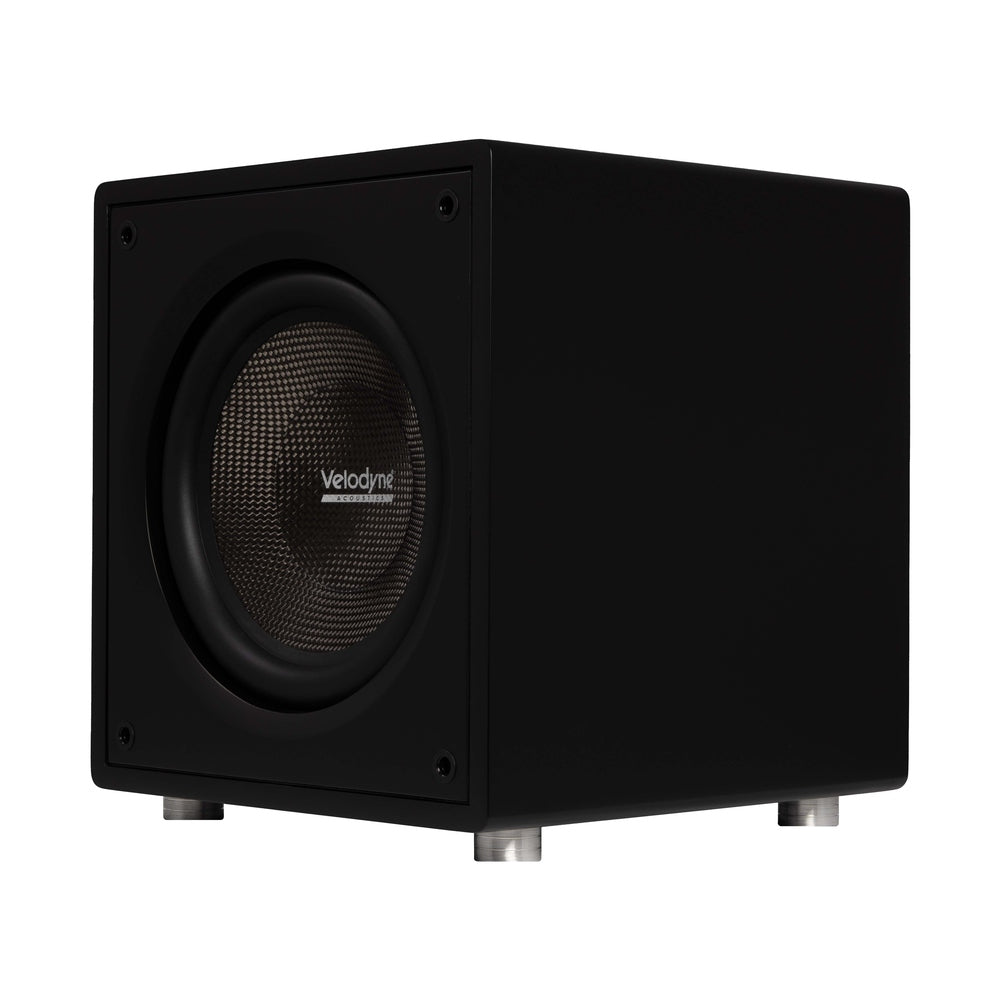

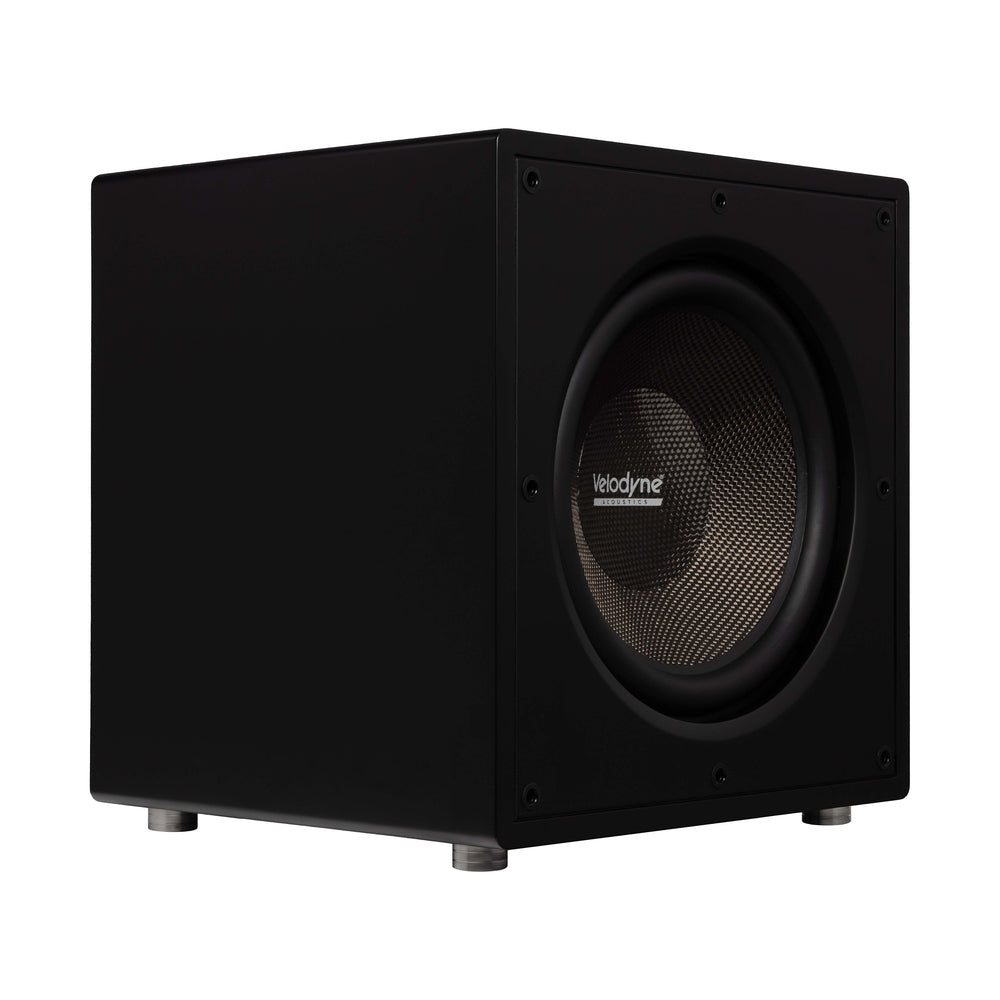

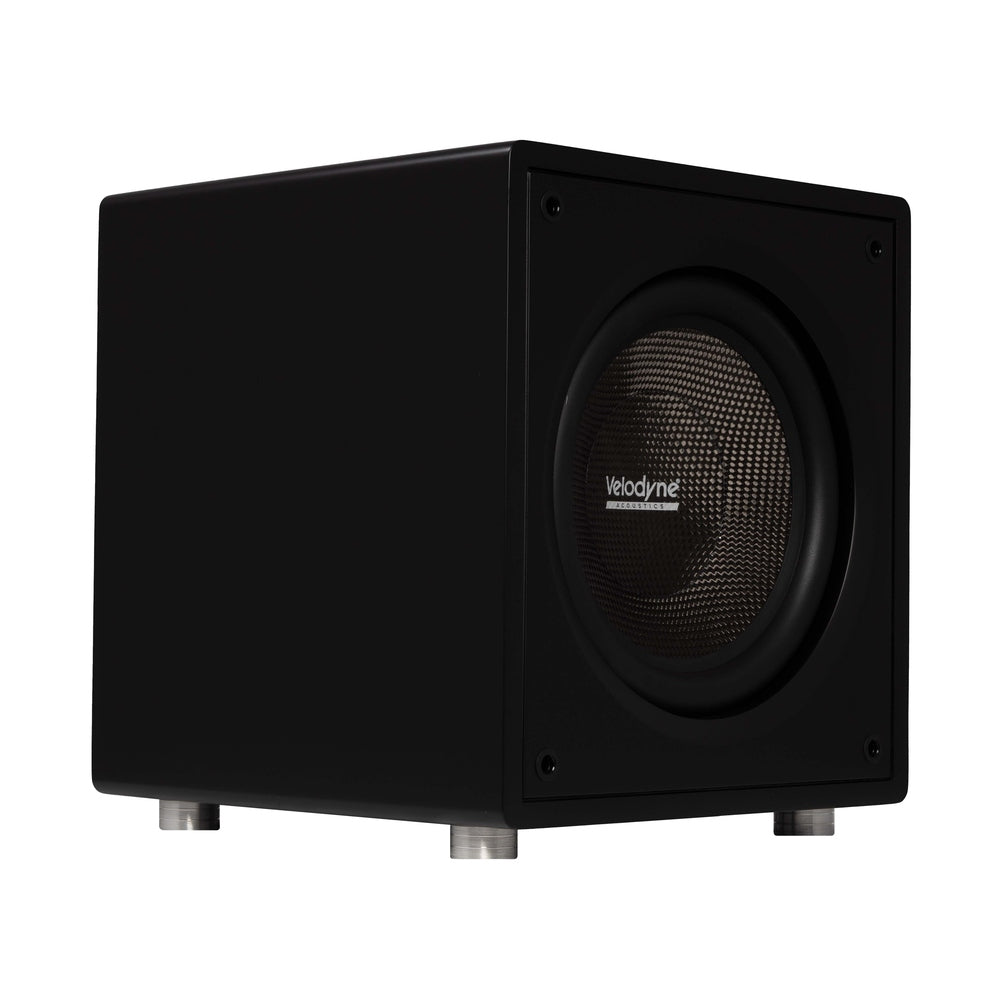

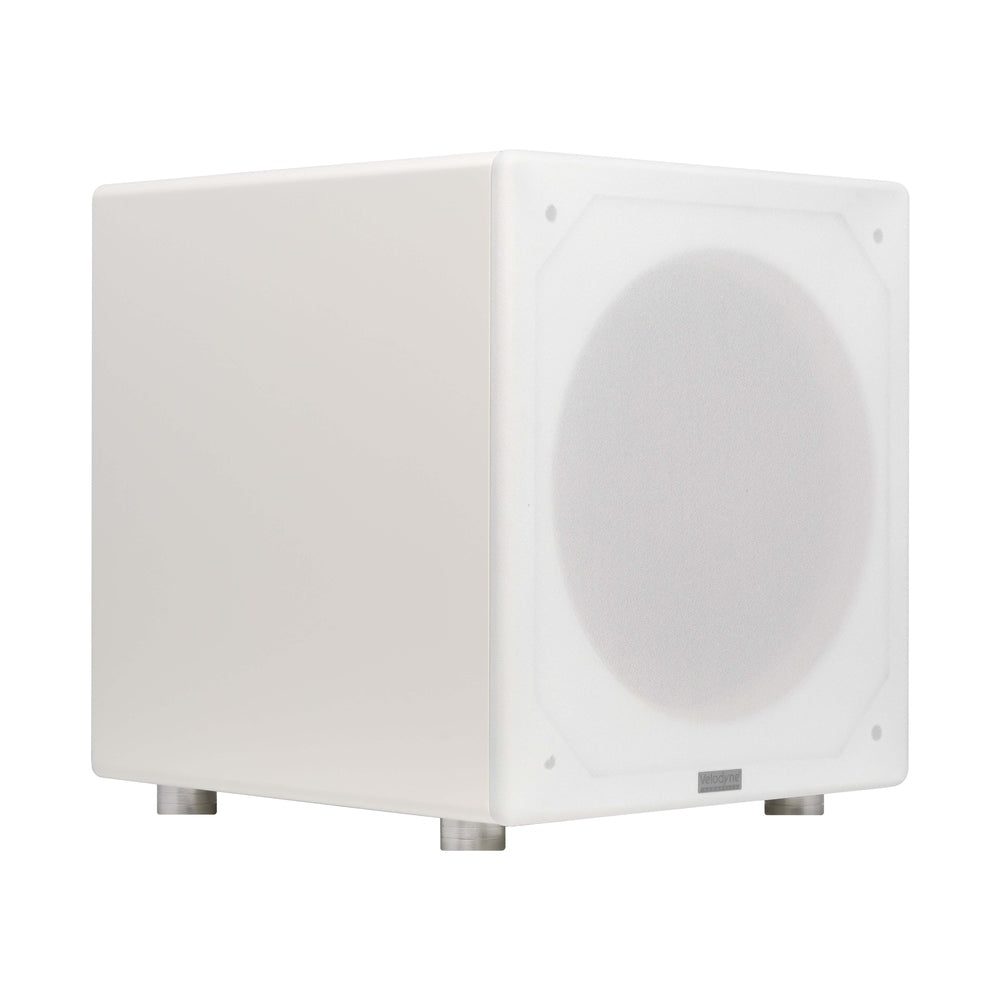

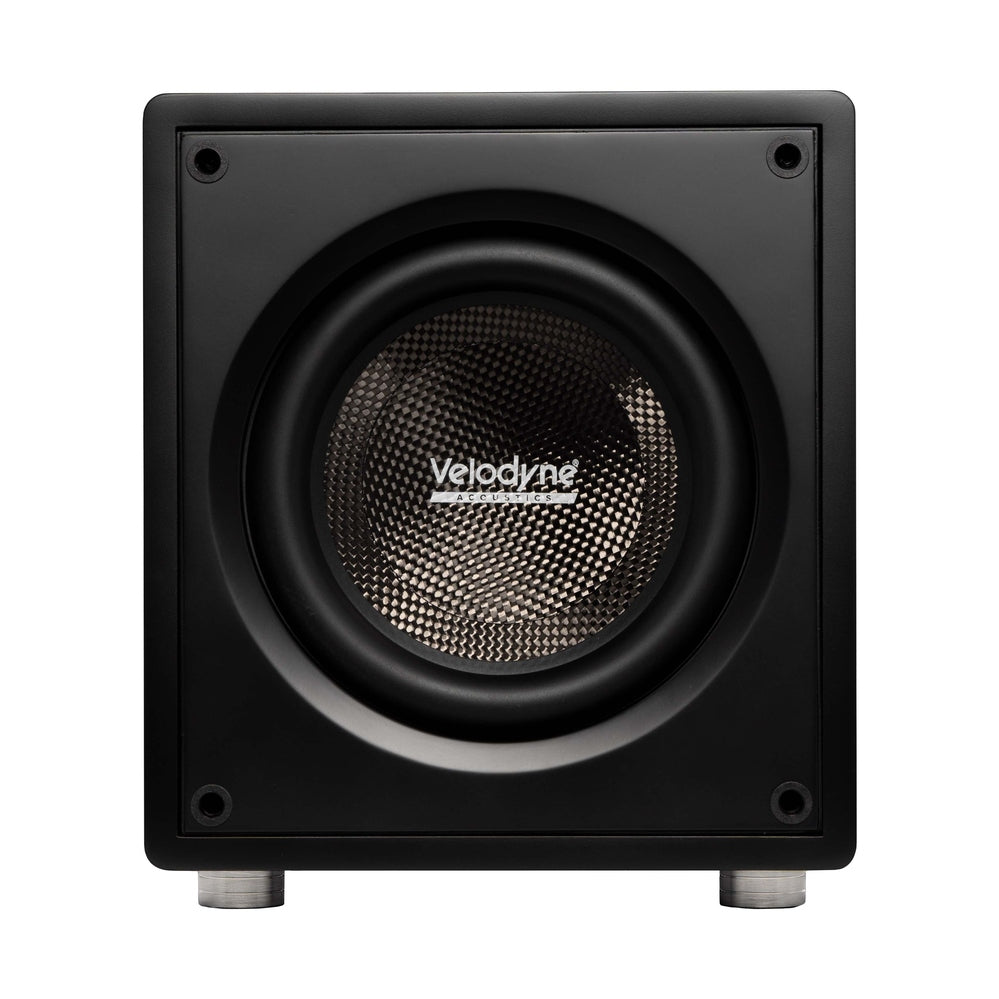

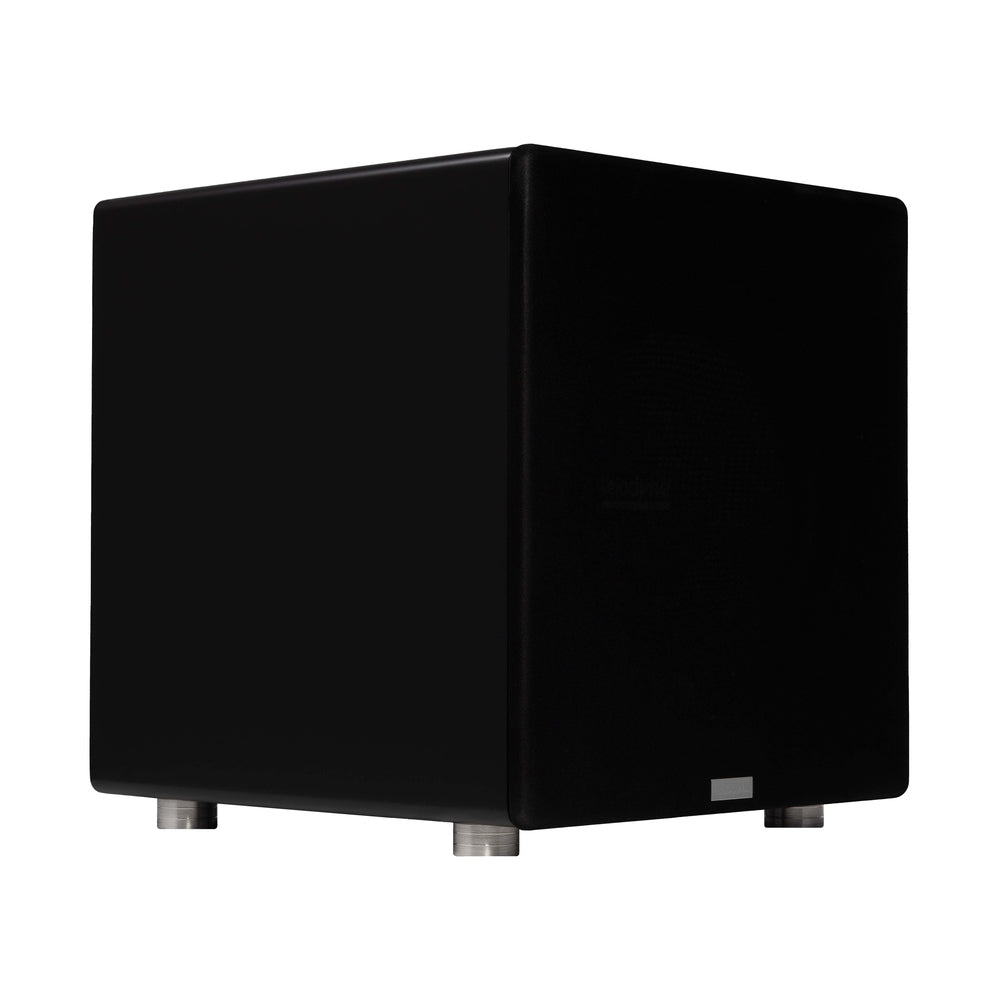

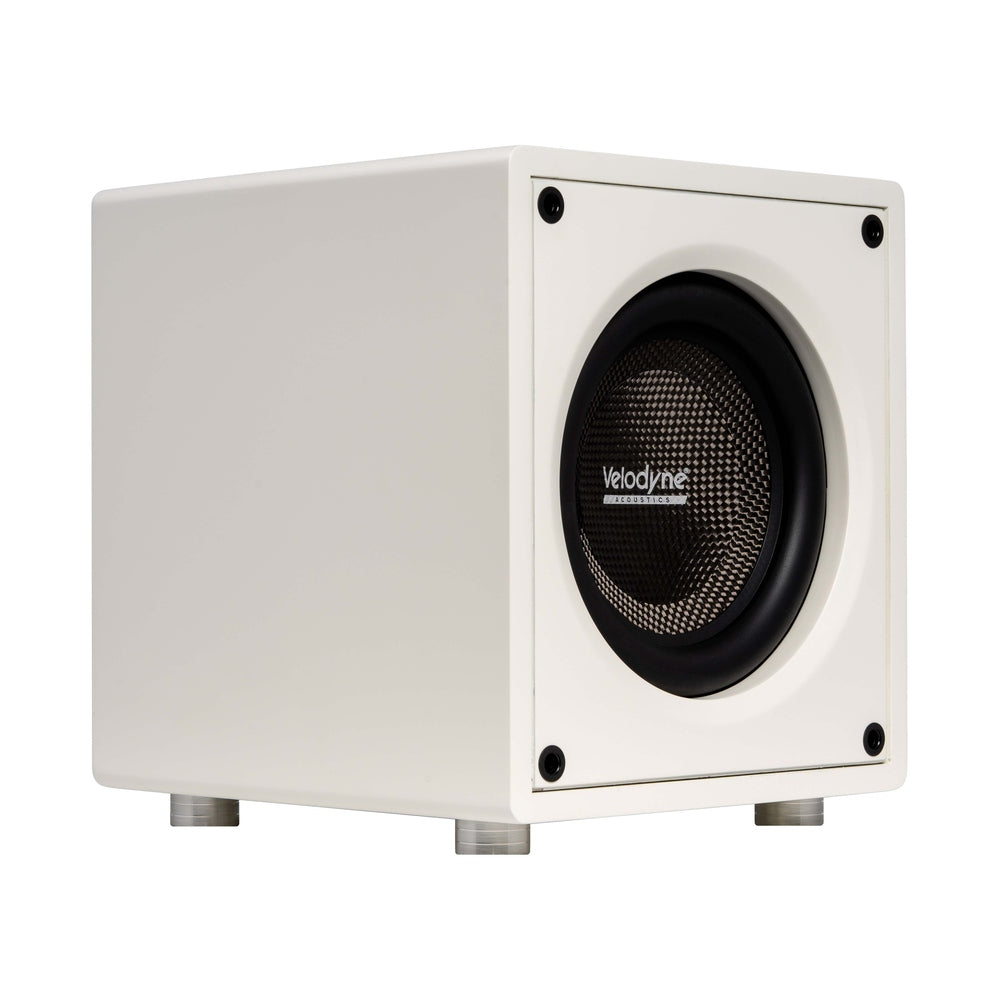

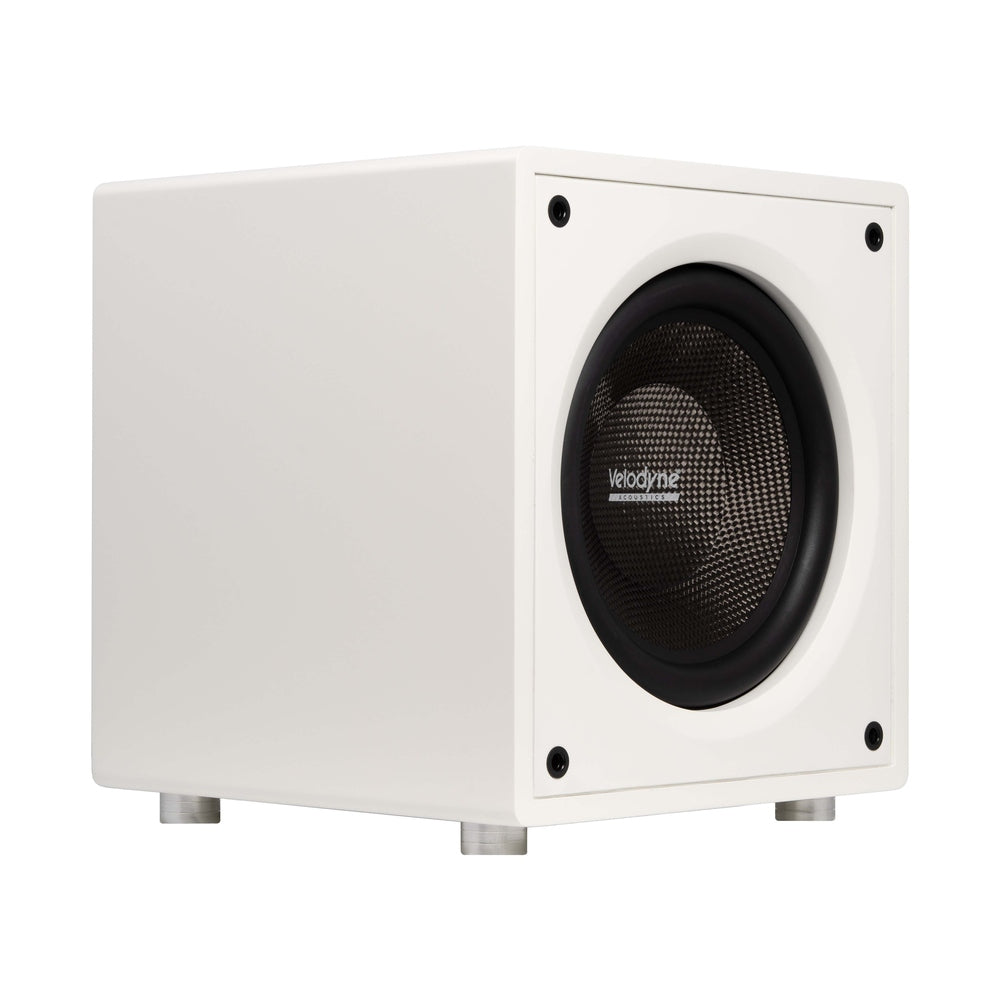

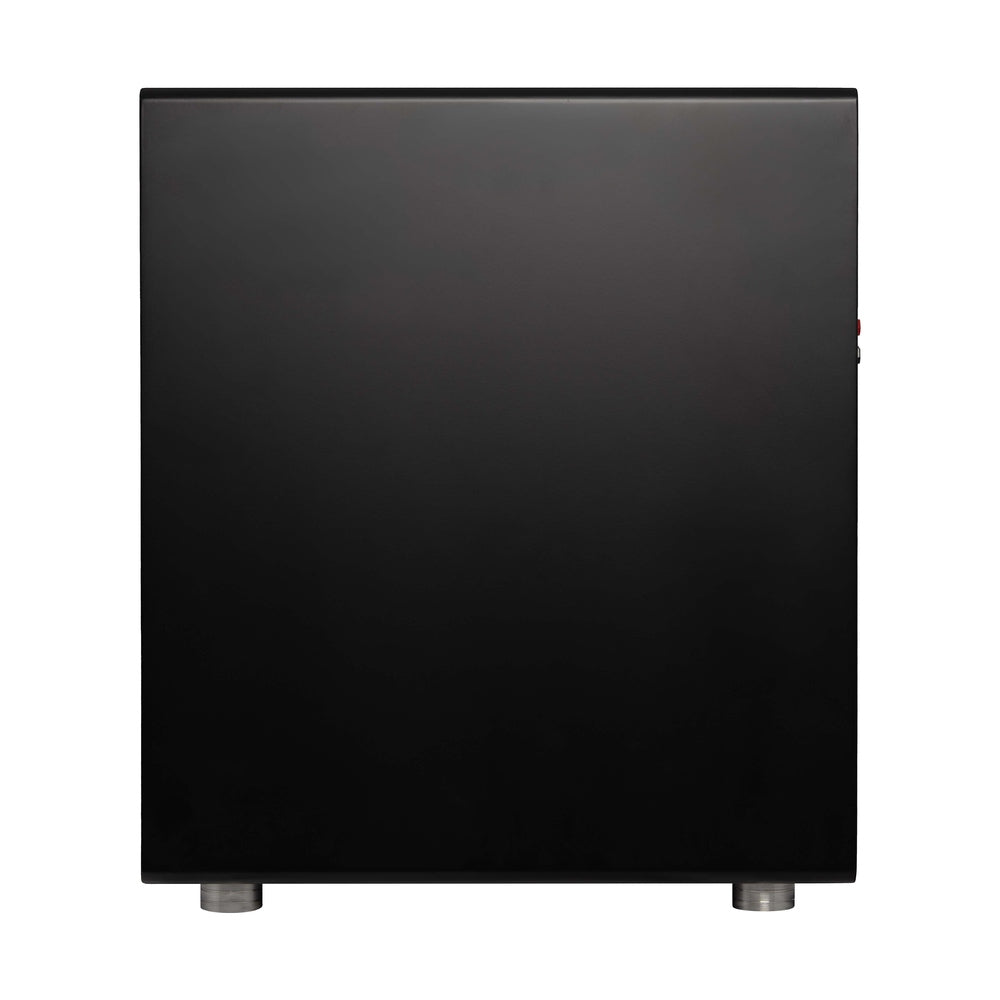

The three VI-Q subwoofers in sizes 10, 12 and 15 inch

combine extremely high performance with low distortion with the best ease of use in a premium matte black enclosure.

Driver	10″ front firing driver
Amplifier Class D	850 watt dynamic 450-watt RMS
Overall Frequency Response: (± 3 dB)	28 – 200 Hz
Overall Frequency Response: (± 10 dB)	25 – 280 Hz
Low Pass Crossover	50 Hz to 180 Hz (12 dB/Octave)
Phase	0 / 180 degrees
Cabinet Design	22mm HDF 50mm front
Magnet Structure	Dual ferrite magnet motor
Woofer	10” high excursion triple vented basket driver with carbon fiber Membrane and convex cone
Voice Coil	Four Layer 2,5″ / 63mm voice coil

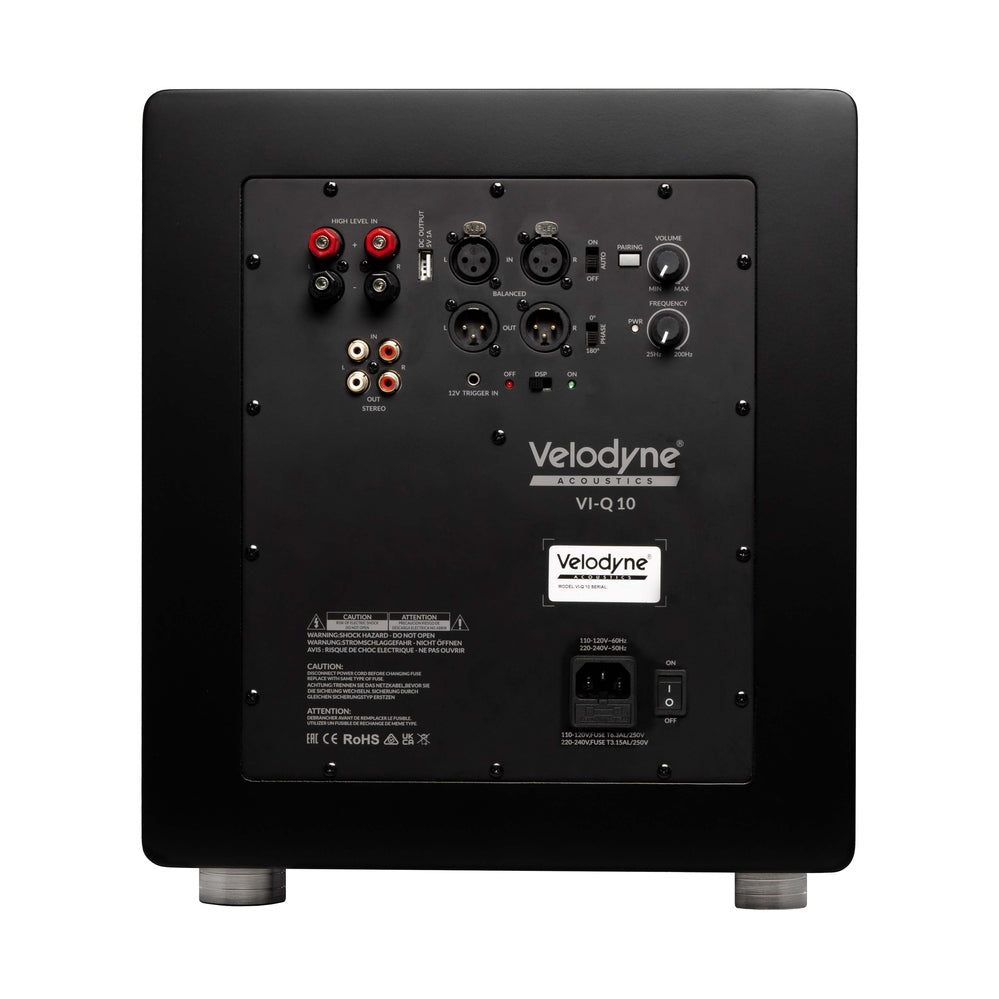

Input	Gold plated Stereo/LFE RCA, Nickel plated XLR and High level in
Output	Gold plated Stereo/LFE RCA, Nickel plated XLR
Power Selector	Off / Auto / On
Finishes	Flat mat black / Flat mat white
Dimensions (W/H/D) (includes feet and connectors)	38cm x 40cm x 32 cm
Weight (approx)	21 kg
Shipping Weight (approx)	24 kg
